Thyristor Leg

Description of the Thyristor Leg component in Schematic Editor

A schematic block diagram of the Thyristor Leg with corresponding Thyristor arrangement and naming is given in Figure 1.

Weight of a Thyristor Leg component for real-time/VHIL simulation is 1.

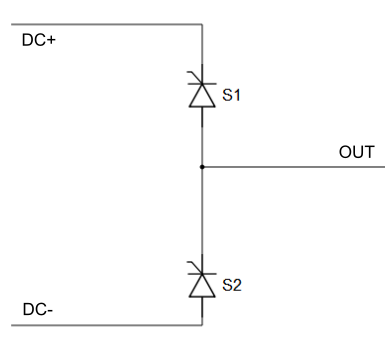

Figure 1. A schematic block diagram of a Thyristor Leg with corresponding thyristor naming

Control

Selecting Digital inputs as the Control parameter enables assigning gate drive inputs to any of the digital input pins (from 1 to 32(64)). For example, if S1 is assigned to 1, the digital input pin 1 will be routed to the S1 switch gate drive. In addition, the gate_logic parameter selects either active high (High-level input voltage VIH turns on the switch), or active low (Low-level input voltage VIL turns on the switch) gate drive logic, depending on the design of the external controller. In TyphoonSim, digital signals are read from the internal virtual IO bus. Hence, if some signal is sent to digital ouput 1, it will appear on digital input 1.

Selecting Model as the Control parameter, enables setting of the thyristors gate drive signals directly from the signal processing model. The input pin gates appears on the component. It is a 2-element vector input, where the first value (index 0) controls the S_top gate and the second value (index 1) controls the S_bot gate. When controlled from the model, logic is always active high.

PESB Optimization

The PESB Optimization option is available in certain converter models. When PESB Optimization is enabled, all converter's short circuit state space modes will be merged and treated as the same state space mode. For example, if one converter leg within the three phase converter is short circuited and PESB Optimization is enabled, all of the legs within the three phase converter will also be short circuited. This simplification for short circuit modeling can save a significant amount of matrix memory.

Feature ignored: PESB Optimization is specific for optimization of real-time simulation and it is not applied to TyphoonSim at all. Changing its value will not affect TyphoonSim simulation at all.

Losses calculation

When the Losses calculation property is enabled, the component will calculate switching and conduction power losses for all thyristors. Switching power losses are calculated as a function of current, voltage, and temperature using 3D Look-up tables (LUTs). Also, 2D input tables for losses is supported. When a 2D losses table is inserted, it assumes only current and temperature dependance. Conduction power losses can be defined as a function of current and temperature using Vt Look-up table. This LUT can be either 1D or 2D. If the LUT is a 1D table, the forward voltage drop depends only on current. If the LUT is a 2D table, the forward voltage drop dependence on the junction temperature is included.

Note: An interactive overview of how you can incorporate power loss calculation in your model is available as part of the HIL for Power Electronics course on HIL Academy, as well as in the video Knowledgebase.

Input/output power losses ports receive/generate vectors of two elements. The first element (index 0) is the upper thyristor, the second element (index 1) is the bottom thyristor.

Available component properties are:

  • Current values - Switching elements current axis [A]
  • Voltage values - Switching elements switching losses, voltage axis [V]
  • Temp values - Switching elements temperature axis [°C]
  • Vt table - Thyristor forward voltage drop, f(I,T) [V]
  • Et on table - Thyristor turn ON losses, output energy, f(I, V, T) [J]

Temperatures calculation

When the Temperatures calculation property is enabled, component will calculate combined power losses (P_loss) and junction temperatures (T_junctions) for all thyristors. Combined power losses represent sum of the calculated switching and conduction losses transfered through internally generated Thermal network component. The internally generated Thermal network component also calculates junction temperatures from power losses, input case temperatures, and the provided thermal model parameters. Input/output ports for temperatures calculation are vectors of two elements and they are indexed in the same way as explained in the Losses calculation section.

Note: An interactive overview of how you can incorporate temperature calculation in your model is available as part of the HIL for Power Electronics course on HIL Academy, as well as in the video Knowledgebase.
Additional temperatures calculation mask properties include:
  • Thermal networks type - Defines the type of internal thermal network
  • Thyristor Rth - List of thermal resistances for the thyristor
  • Thyristor Tth / Thyristor Cth - List of thermal time constants or thermal capacitances for the thyristor
  • Calculation execution rate - Execution rate in [s] for the losses and temperatures calculation logic

Digital Alias

If a converter is controlled by digital inputs, an alias for every digital input used by the converter will be created. Digital input aliases will be available under the Digital inputs list alongside existing Digital input signals. The alias will be shown as Converter_name.Switch_name, where Converter_name is name of the converter component and Switch_name is name of the controllable switch in the converter.

Ports

  • DC+ (electrical)
    • DC side + port.
  • DC- (electrical)
    • DC side - port.
  • OUT (electrical)
    • AC side port
  • gates (in)
    • Available if model control is selected
    • Vector of 2 input gate signals for thyristors
  • T_junctions (in)
    • Available if Losses calculation is enabled and Temperature calculation is disabled
    • Used to provide junction temperatures for thyristor losses calculations
    • T_junctions consists of 2 temperature values, one for every thyristor
  • T_cases (in)
    • Available if Temperature calculation is enabled
    • Used to provide case temperatures for the thermal model
    • T_junctions consists of 2 temperature values, one for every thyristor
  • cond_losses (out)
    • Available if Losses calculation is enabled
    • Represents conduction losses of the thyristors
    • cond_losses consists of 2 values
  • sw_losses (out)
    • Available if Losses calculation is enabled
    • Represents switching losses of the thyristors
    • sw_losses consists of 2 values
  • P_loss (out)
    • Available if both Losses and Temparature calculation are enabled
    • Represents sum of conduction and switching losses of the thyristors
    • P_loss consists of 2 values
  • T_junctions (out)
    • Available if both Losses and Temparature calculation are enabled. In this case T_junctions is an output since the case thermal model is inside the component and case temperatures are provided as an input to the component.
    • Represents the junction temperatures of the thyristors
    • T_junctions consists of 2 values

General (Tab)

  • Control
    • Specifies how thyristors are controled. It is possible to choose between: Digital inputs and Model
    • More details about each type of control can be found in the Control section
  • If Digital inputs is selected as Control, the following properties can be used:
    • S1
      • Digital input that is used to control S1 thyristor
    • S1 logic
      • Logic that will be applied to control signal for S1
      • Active high or active low
    • S2
      • Digital input that is used to control S2 thyristor
    • S2 logic
      • Logic that will be applied to control signal for S2
      • Active high or active low
    • Gate control enabling
      • If enabled, gives a possibility to control if changes in the gate control signal are applied or not
    • Sen
      • Available if Gate control enabling is enabled
      • Digital input that enables/disables switching
    • Sen_logic
      • Available if Gate control enabling is enabled
      • Logic that will be applied to Sen signal
  • If Model is selected as Control, the following properties can be used:
    • Execution rate
      • Defines the period between two updates of gate signals for the component. Gate signals are provided as a signal processing input to component.

Advanced (Tab)

  • PESB Optimization
    • PESB Optimization is specific for optimization of real-time simulation and it is not applied to TyphoonSim at all. Changing its value will not affect TyphoonSim simulation at all.
    • Enables/disables PESB optimization. More details can be found in the dedicated PESB Optimization section.

Losses (Tab)

  • Losses calculation
    • Losses calculation is not supported in TyphoonSim simulation yet.
    • Enables/disables losses calculation for converter. More details can be found in the dedicated Losses calculation section.
  • Current values
    • Available if Losses calculation is enabled
    • Vector of current values that are used to specify converter losses at specific points.
  • Voltage values
    • Available if Losses calculation is enabled
    • Vector of voltage values that are used to specify converter losses at specific points.
  • Temp Values
    • Available if Losses calculation is enabled
    • Vector of temperature values that are used to specify converter losses at specific points.
  • Vt table
    • Available if Losses calculation is enabled
    • 2D look up table for thyristor conduction voltage drop values. More information about table formats can be found in the Losses calculation section.
  • Et on table
    • Available if Losses calculation is enabled
    • 3D look up table for thyristor turn on switching losses. More information about table formats can be found in the Losses calculation section.
  • Temperatures calculation
    • Available if Losses calculation is enabled
    • Enables/disables losses temperature calculation for converter. Thermal model must be provided. More details can be found in the dedicated Temperatures calculation section.
  • Thermal networks type
    • Available if Temperature calculation is enabled
    • Specifies the type of thermal network model: Foster or Cauer
  • Thyristor Rth
    • Available if Temperature calculation is enabled
    • Thyristor thermal resistance
    • Vector
  • Thyristor Tth
    • Available if Temperature calculation is enabled and the Thermal network type is Foster
    • Thyristor thermal time constant
    • Vector
  • Thyristor Cth
    • Available if Temperature calculation is enabled and the Thermal network type is Cauer
    • Thyristor thermal capacitance
    • Vector
  • Calculations execution rate
    • Available if Losses calculation is enabled
    • Execution rate for losses calculation. Defines interval that will be used to update losses calculation inputs and outputs.

Extras (Tab)

The Extras tab gives you the opportunity to set Signal Access Management for the component.
Signal visibility is calculated based on the 'signal_access' property and whether or not a parent component in its hierarchy is locked or not. Components that are not contained within locked components expose their signals regardless of the 'signal_access' property. The 'signal_access' property can have one of three values:
  • Public - Components marked as public expose their signals on all levels.
  • Protected - Components marked as protected will hide their signals to components outside of their first locked parent component.
  • Inherit - Components marked as inherit will take the nearest parent 'signal_access' property value that is set to a value other than inherit.
