H6_5 Single Phase Inverter

This section describes single-phase two-level H6_5 inverter

Component Not Supported: This component is not currently supported in TyphoonSim. Adding this component to your model will prevent you from being able to run your model in TyphoonSim. Please disable or remove this component from your model before attempting to run your model in TyphoonSim mode.
A block diagram and input parameters for the H6_5 inverter are given in Table 1.
Table 1. Single phase two level H6_5 inverter in the Schematic Editor core library

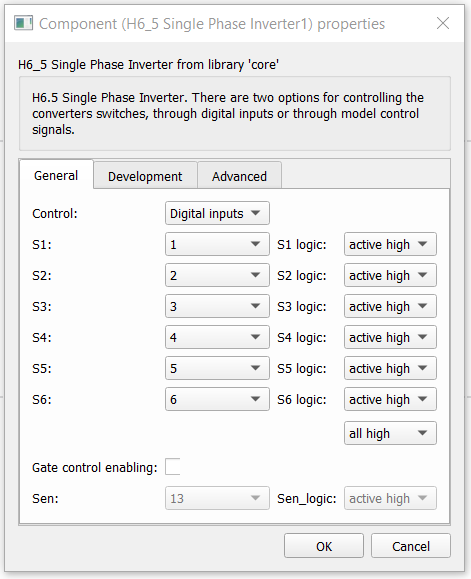

component component dialog window component properties

Single Phase H6_5 Inverter
  • General
    • Control (Digital inputs, Model)
    • S1 (digital input selection for switch S1)
    • S2 (digital input selection for switch S2)
    • S3 (digital input selection for switch S3)
    • S4 (digital input selection for switch S4)
    • S5 (digital input selection for switch S5)
    • S6 (digital input selection for switch S6)
    • Gate control enabling (enables usage of external digital signal to enable the switching)
    • Sen (digital input selection for PWM enable)
Digital inputs, when selected for Control parameter, enables the user to assign gate drive inputs to any of the digital input pins.For example, if S1 is set to 1, the digital input pin 1 will be routed to the S1 switch gate. In addition, the S1_logic parameter selects either active high (High-level input voltage VIH turns on the switch), or active low (Low-level input voltage VIL turns on the switch) gate logic, depending on the user’s external controller design.

Model, when selected for Control parameter, enables the user to set the IGBTs gate drive signals directly from signal processing model. The input pin gates appears on the component and requires a vector input of six gate drive signals in the following order: [S1, S2, S3, S4, S5, S6]. When controlled from the model, logic is always active high.

Gate control enabling, when checked, enables using an external PWM enabling digital signal.

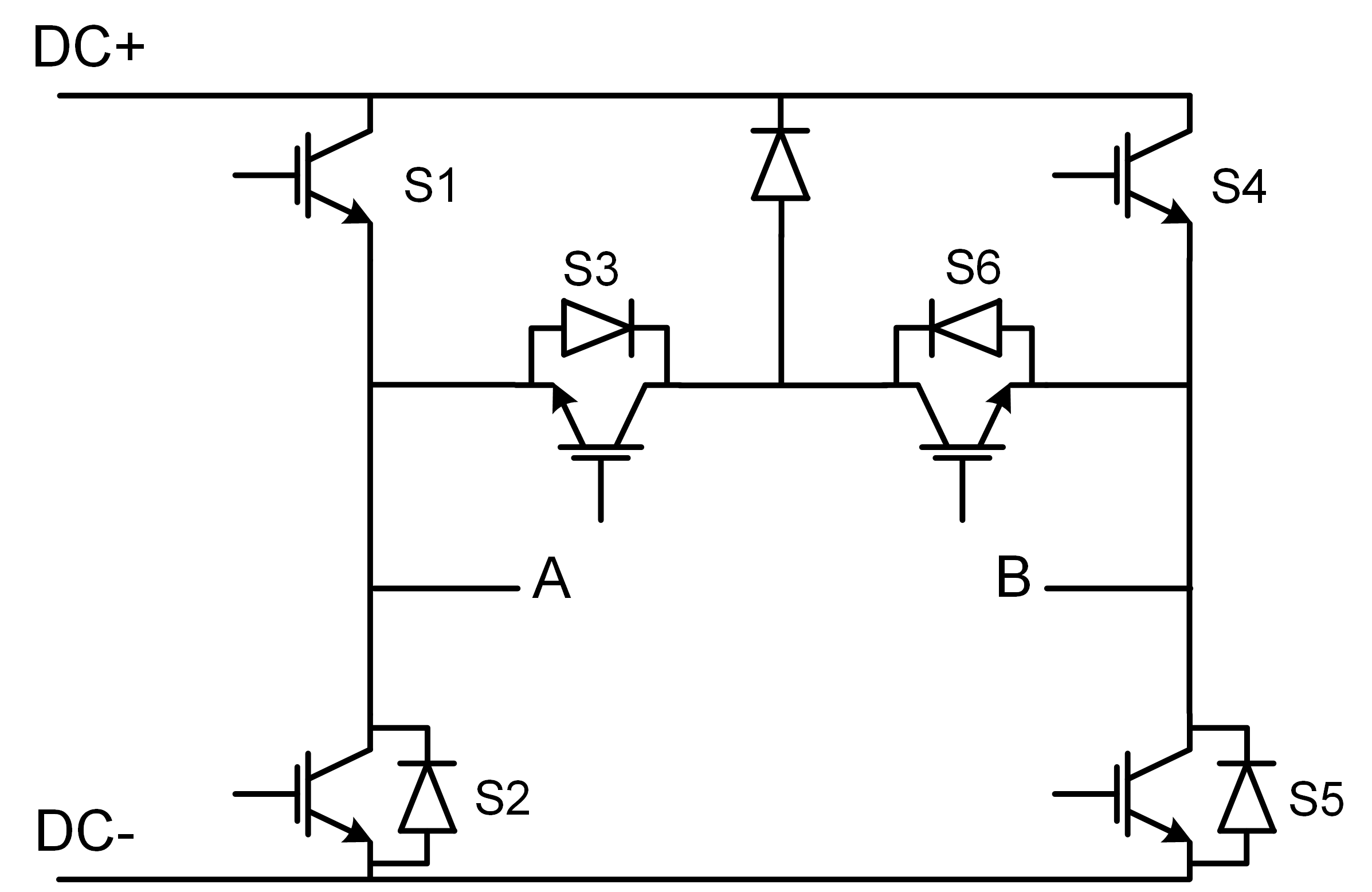

Figure 1. A schematic block diagram of a single-phase H6.5 inverter block diagram with corresponding switch naming

PESB Optimization

The PESB Optimization option is available in certain converter models. When PESB Optimization is enabled, all converter's short circuit state space modes will be merged and treated as the same state space mode. For example, if one converter leg within the three phase converter is short circuited and PESB Optimization is enabled, all of the legs within the three phase converter will also be short circuited. This simplification for short circuit modeling can save a significant amount of matrix memory.

Feature ignored: PESB Optimization is specific for optimization of real-time simulation and it is not applied to TyphoonSim at all. Changing its value will not affect TyphoonSim simulation at all.

Digital Alias

If a converter is controlled by digital inputs, an alias for every digital input used by the converter will be created. Digital input aliases will be available under the Digital inputs list alongside existing Digital input signals. The alias will be shown as Converter_name.Switch_name, where Converter_name is name of the converter component and Switch_name is name of the controllable switch in the converter.
