ANPC Flying Capacitor Inverter 9 Level Leg

Description of the nine-level ANPC flying capacitor inverter component in Schematic Editor

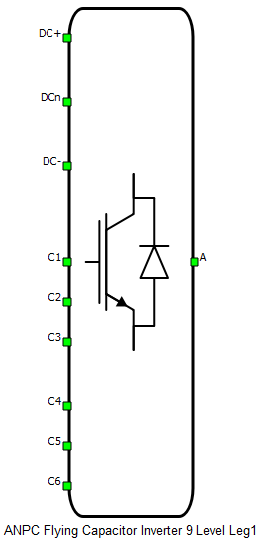

A block diagram and input parameters for the ANPC Flying Capacitor Inverter 9 Level Leg are given in Table 1.

Table 1. Nine-level ANPC flying capacitor inverter block in the Schematic Editor core library

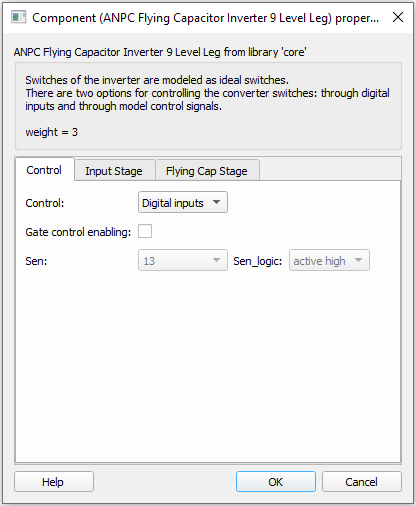

component component dialog window component parameters

Nine level ANPC flying capacitor inverter

  • Control
    • Control(Digital inputs, Model)
    • Gate control enabling (allows use of an external digital signal to enable switching)
    • Sen (digital input selection for PWM enable)
    • Sen_logic (active high, active low)
  • Input Stage
    • S1 (digital input selection for switch S1)
    • S2 (digital input selection for switch S2)
    • S3 (digital input selection for switch S3)
    • S4 (digital input selection for switch S4)
  • Flying Cap Stage
    • S5 (digital input selection for switch S5)
    • S6 (digital input selection for switch S6)
    • S7 (digital input selection for switch S7)
    • S8 (digital input selection for switch S8)
    • S9 (digital input selection for switch S9)
    • S10 (digital input selection for switch S10)
    • S11 (digital input selection for switch S11)
    • S12 (digital input selection for switch S12)
    Weight = 3

Figure 1 shows a schematic block diagram of the inverter switching block with corresponding switch arrangement and naming.

Digital inputs, when selected as the Control parameter, enables you to assign gate drive inputs to any of the digital input pins (from 1 to 32). For example, if S1 is assigned to 1, the digital input pin 1 will be routed to the S1 switch gate drive. In addition, the S1_logic parameter is set to either active high (i.e. high-level input voltage VIH turns on the switch) or active low (i.e. low-level input voltage VIL turns on the switch). The gate drive logic depends on your external controller design.

Model, when selected as the Control parameter, enables you to set the IGBT gate drive signal directly from the signal processing model. The input pin gate appears on the component. It is a vector input, of twelve gate drive signals in the following order: [S1, S2, … , S11, S12]. When controlled from the model, the logic is always set to active high.

Gate control enabling, when checked, allows PWM enabling from an external digital signal.

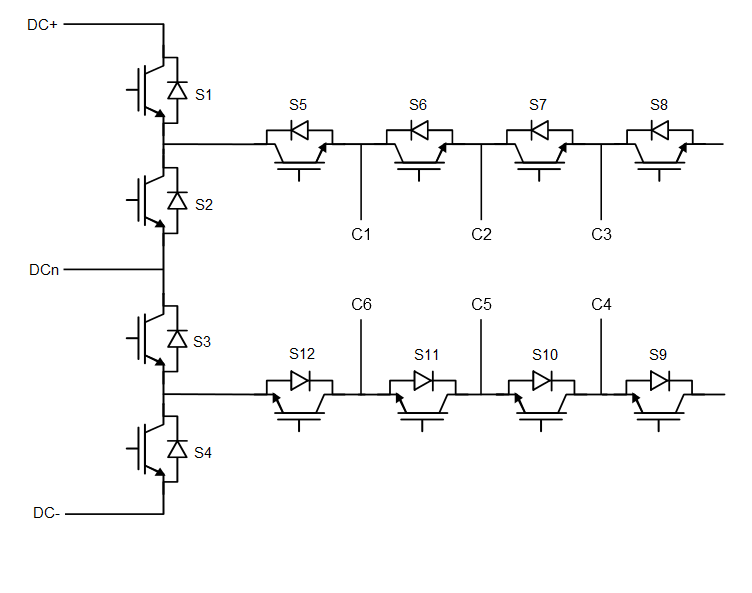

Figure 1. A schematic block diagram of a nine-level ANPC flying capacitor inverter block diagram with corresponding switch naming

Digital Alias

If a converter is controlled by digital inputs, an alias for every digital input used by the converter will be created. Digital input aliases will be available under the Digital inputs list alongside existing Digital input signals. The alias will be shown as Converter_name.Switch_name, where Converter_name is name of the converter component and Switch_name is name of the controllable switch in the converter.
