Cuk converter

Description of the Cuk converter component in Schematic Editor

A block diagram and input parameters for Cuk converter switching blocks are given in Table 1.

Table 1. The Cuk converter component in the HIL Toolbox
component component dialog window component parameters

Cuk converter

  • Control (Digital inputs, Internal modulator, Model)
  • S1 (digital input selection for switch S1)
  • gate_logic (active high, active low)
  • Gate control enabling (enables usage of external digital signal to enable the switching)
  • Sen (digital input selection for gate enable)
Weight = 1

A schematic block diagram of the Cuk switching block is given in Figure 1 with its corresponding switch arrangement and naming.

Digital inputs, when selected as the Control parameter, enables you to assign gate drive inputs to any of the digital input pins (from 1 to 32). For example, if S1 is assigned to 1, the digital input pin 1 will be routed to the S1 switch gate drive. In addition, the gate_logic parameter is set to either active high (i.e. high-level input voltage VIH which turns on the switch) or active low (i.e. low-level input voltage VIL which turns on the switch). The gate drive logic depends on your external controller design.

The Internal modulator, when selected as the Control parameter, enables you to use the internal PWM modulator for driving the S1 switch instead of the digital input pins. In this configuration, two additional component inputs will be present. The En input is used to enable/disable PWM modulator control, while In is used as the reference signal input for the internal PWM modulator.

Model, when selected as the Control parameter, enables you to set the IGBT gate drive signal directly from the signal processing model. The input pin gate appears on the component. It is a single element input, where that value controls S1 switch gate. When controlled from the model, the logic is always set to active high.

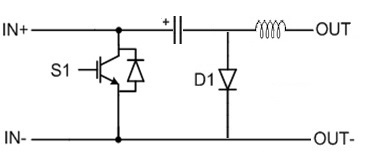

Figure 1. Schematic block diagram of Cuk block diagram with corresponding switch naming

Digital Alias

If a converter is controlled by digital inputs, an alias for every digital input used by the converter will be created. Digital input aliases will be available under the Digital inputs list alongside existing Digital input signals. The alias will be shown as Converter_name.Switch_name, where Converter_name is name of the converter component and Switch_name is name of the controllable switch in the converter.
