H6 Single Phase Inverter

This section describes single-phase H6 inverter

Component Not Supported: This component is not currently supported in TyphoonSim. Adding this component to your model will prevent you from being able to run your model in TyphoonSim. Please disable or remove this component from your model before attempting to run your model in TyphoonSim mode.

A block diagram and input parameters for a single phase H6 inverter block are given in Table 1.

Table 1. A single-phase H6 inverter block in the Schematic Editor core library
component component dialog window component parameters

Single-phase H6 inverter

  • General
    • Control(Digital inputs, Model)
    • S_1 (1..32)
    • S_2 (1..32)
    • S_3 (1..32)
    • S_4 (1..32)
    • S_5 (1..32)
    • S_6 (1..32)
    • gate_logic (active high, active low)
    • Gate control enabling (enables usage of external digital signal to enable the switching)
    • Sen (digital input selection for PWM enable)
    Weight = 2

A schematic block diagram of the inverter switching block is given in Figure 1 with corresponding switch arrangement and naming.

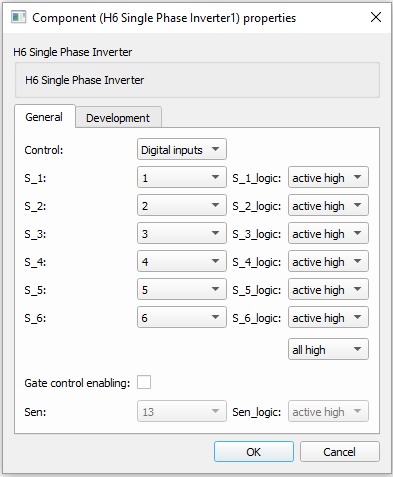

Digital inputs, when selected for Control parameter, enables the user to assign gate drive inputs to any of the digital input pins (from 1 to 32). For example, if S_1 is assigned to 1, the digital input pin 1 will be routed to the S_1 switch gate drive. In addition, the gate_logic parameter selects either active high (High-level input voltage VIH turns on the switch) or active low (Low-level input voltage VIL turns on the switch) gate drive logic, depending on the user’s external controller design.

Model, when selected for Control parameter, enables the user to set the IGBTs gate drive signals directly from signal processing model. The input pin gates appears on the component and requires a vector input of six gate drive signals in the following order: [S_1, S_2, S_3, S_4, S_5, S_6]. When controlled from the model, logic is always active high.

Gate control enabling, when checked, enables using an external PWM enabling digital signal.

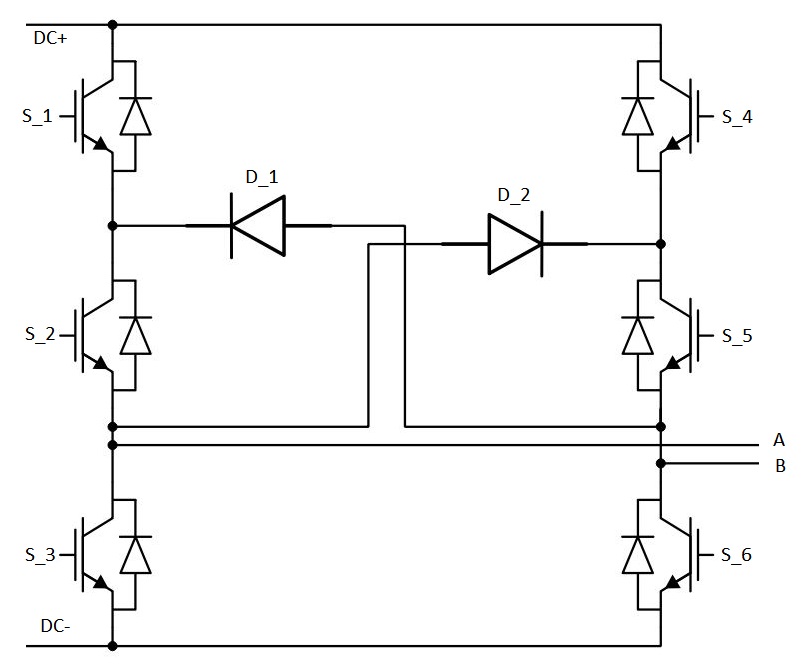

Figure 1. A schematic block diagram of a single-phase H6 inverter block diagram with corresponding switch naming

Digital Alias

If a converter is controlled by digital inputs, an alias for every digital input used by the converter will be created. Digital input aliases will be available under the Digital inputs list alongside existing Digital input signals. The alias will be shown as Converter_name.Switch_name, where Converter_name is name of the converter component and Switch_name is name of the controllable switch in the converter.
