HIL Simulator

Our expertise will help your company win.

Typhoon HIL simulators are best-in-class hardware devices that can support all your needs for testing and validation of power electronic controllers. Our current product offerings provide you with a cost-effective and efficient way to start developing and testing controllers before hardware is even available, to start testing early and to test continuously, to optimize control algorithms, to streamline lifecycle maintenance of controller software, to enable continuous integration-continuous deployment (Ci/CD) and ensure the interoperability and safety of systems before deployment in real-world applications.

Paired with our software toolchain, Typhoon HIL Control Center (THCC), we provide a seamlessly integrated monolithic solution for HIL simulation. Forget about interoperability issues and set-up headaches with our virtually integrated software and hardware you to focus your attention on testing and not on setting up the test system. Connect with a Typhoon HIL representative for a complimentary discussion to learn more about how we can support your design, testing, and validation needs.

Quality. Performance. Convenience.

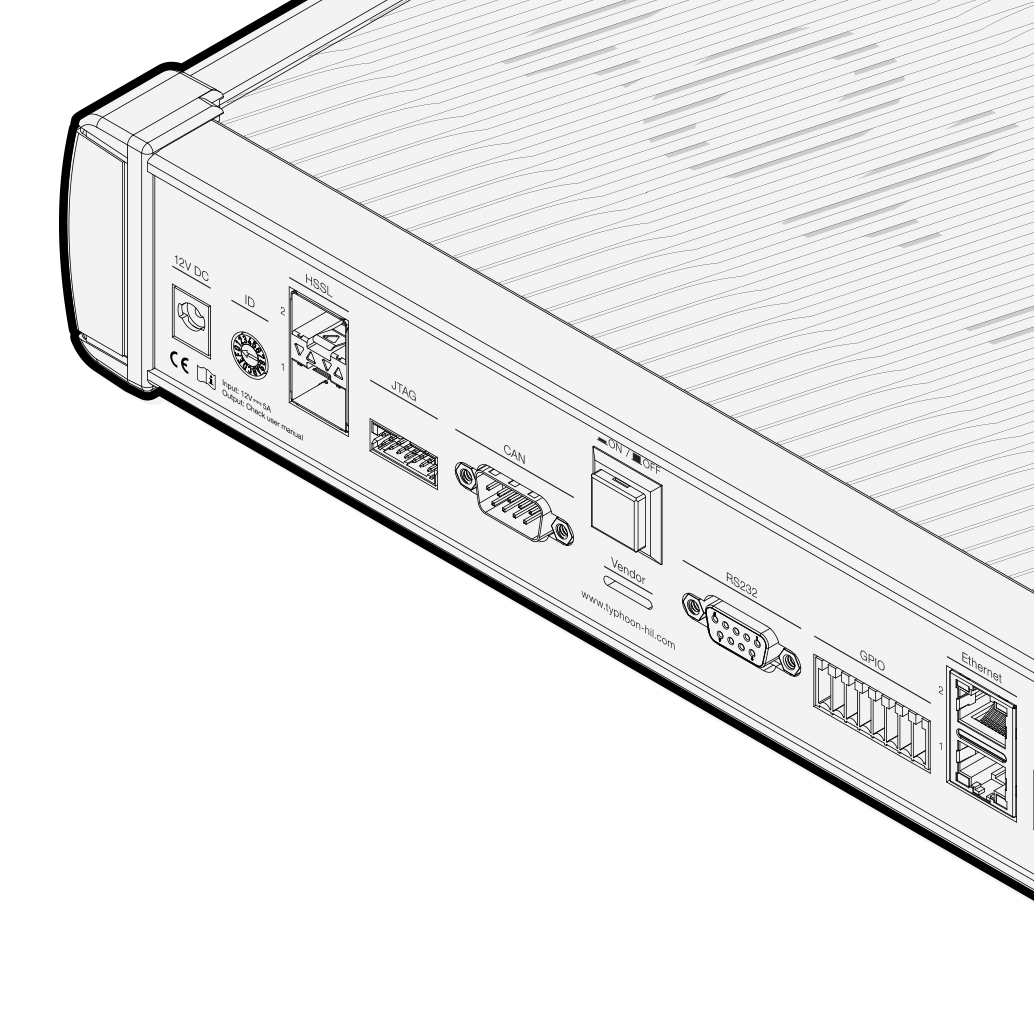

HIL101

Isometric, line drawing of the HIL404 with all the connectors.

The HIL101 is an FPGA-based simulator designed for educational settings, offering high precision and advanced features at an affordable price. It supports real-time control prototyping and general simulations, allowing seamless integration of power stage models with Typhoon HIL’s software. The HIL101 includes a built-in mixed-signal oscilloscope and is compatible with various popular third-party tools, making it an ideal choice for validating controller performance in academic research in power electronics.

Isometric, line drawing of the HIL404 with all the connectors.
Fidelity. Speed. Portability.

HIL404

Isometric, line drawing of the HIL404 with all the connectors.

Our HIL404 delivers the unprecedented model fidelity needed for the most advanced motor drives and automotive power electronics applications. By leveraging the ultra-high fidelity and ease-of-use of the existing Typhoon HIL solutions, and by bringing the extra speed to the table, the HIL404 makes the HIL testing methodology truly applicable for the emerging high frequency power conversion applications.

Isometric, line drawing of the HIL404 with all the connectors.
Integration. Scalability. Versatility.

HIL506

Isometric, line drawing of the HIL604 with all the connectors.

The HIL506 is engineered to offer a versatile and affordable solution without sacrificing performance, seamlessly bridging the gap between our entry-level and high-end devices. Perfect for both industrial and academic settings, it sets the industry standard for ultra-low-latency, high-fidelity, real-time emulation with powerful, user-friendly, Python-based software.

Isometric, line drawing of the HIL604 with all the connectors.
Speed. Power. Flexibility.

HIL606

Isometric, line drawing of the HIL606 with all connectors.

Our HIL606 is our top-of-the-line product which encompasses the best features from our entry level devices together with our mid-tier devices providing the perfect balance of speed, power, and flexibility to integrate and scale seamlessly. With these unique connectivity options, your controller won’t know the difference between your test models and the devices in the field, no matter your use case.

Isometric, line drawing of the HIL606 with all connectors.
HIL Simulators​HIL101HIL404HIL506HIL606
Detailed converter models (1ph/3ph)6/38/412/616/8
Average converter models (3ph) 12121824
Distribution network simulation
Minimum simulation timestep250 ns
(50 ns for DC-DC)
200 ns
(25 ns for DC-DC)
200 ns
(25 ns for DC-DC)
200 ns
(25 ns for DC-DC)
DI sampling resolution4.5 ns 3.5 ns3.5 ns3.5 ns
Analog I/O (per unit)16/1616/1616/3232/64
Digital I/O (per unit)32/3232/3232/3264/64
Connectivity / USB
Connectivity / Ethernet
Connectivity / CAN
Connectivity / RS232
Connectivity / EtherCAT
Connectivity / SFP
Time synchronization (PPS and IRIG-B)
ParallelingUp to 4 unitsUp to 4 unitsUp to 16 unitsUp to 16 units
Jul 30, 2021

Typhoon HIL Introducing 4th Generation Flagship – the HIL606.

Now you have the speed you love from our latest 4th generation devices together with the power of our 6-series, 8-core processors, balanced with the flexibility you require to connect to the devices you need.
