HIL SCADA

Manage all of your SCADA model interfaces in one place including making dedicated widgets for frequently used components, matching widgets to selected components, and adding them to your user widget library.

Real-time monitoring in a virtual domain

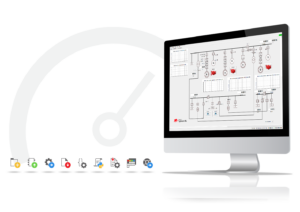

Typhoon HIL SCADA is a simple, easy-to-use graphical environment that allows you to create your own specific interface tailored for your real-time model. HIL SCADA enables you to intuitively control and reconfigure your HIL testbed on the fly. With HIL SCADA you can visualize all simulation results and data collected from real controllers connected to the Testbed. HIL SCADA also enables you to control all aspects of the simulation as well as operate the real controllers within the Testbed.

HIL SCADA is built up by dragging and dropping a wide range of UI components. Freely arrange every single UI component so that it fits your needs and style. All UI components support Python language, therefore enabling you to implement complex test procedures with ease. Our customers benefit from using Typhoon HIL SCADA by:

  • Control and operate the real-time simulation and other hardware devices connected within the Testbed.
  • Monitor all aspects of your real-time simulation and Testbed.
  • Customize and design your SCADA anyway you want it.
  • Automate and make things happen with programmable action widgets.
Aug 6, 2021

How to use HIL SCADA

In this tutorial, see how you can manage all of your SCADA model interfaces in one place including making dedicated widgets for frequently used components, matching widgets to selected components, and adding them to your User Widget Library.
