Integration. Scalability. Versatility.

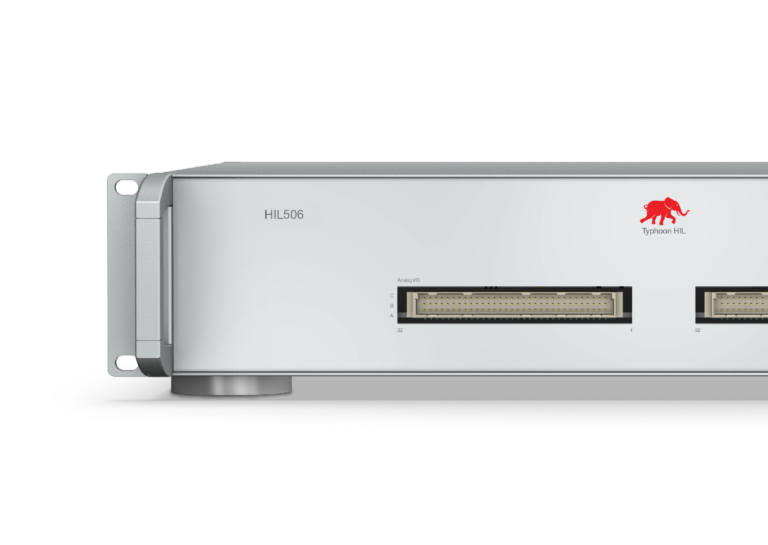

HIL506
Perfect for power electronics systems, motor drives, and grid modernization applications, the HIL506 is derived from our flagship hardware, tailored specifically for mid-range applications.
HIL506 Highlights
The HIL506 is engineered to offer a versatile and affordable solution without sacrificing performance, seamlessly bridging the gap between our entry-level and high-end devices. Perfect for both industrial and academic settings, it sets the industry standard for ultra-low-latency, high-fidelity, real-time emulation with powerful, user-friendly, Python-based software. Whether youâre testing a single power electronics converter control or managing a complex multi-converter system, the HIL506 delivers an integrated, scalable solution that grows with your needs.Â
Our HIL506 device enables:
- Unleash the 6-core processor HIL for real-time emulation of complex multi-converter topologies.
- Emulate your power stage with down to 200ns simulation time step (typically under 500ns).
- Replicate your fast switching DC-DC converter with 25 nanoseconds simulation time step.Â
- Interface your controller via 32 analog outputs, 16 analog inputs, 32 digital inputs, and 32 digital outputs.
- Digital inputs sampling every 3.5ns for great simulation accuracy.
- Dive deeply into your system behavior with 32-channel 64 mega sample capture function running at full simulation rate.
- Build converter models using our extensive library of power electronics components and prepackaged examples.Â
- Automate testing with the power of Python for the most comprehensive control software validation.
- Connect up to 16 units in parallel for extended simulation and IO capacity.
- Connect to host PC via Ethernet or USB 3.0.
Seamless Integration for Diverse Applications.
Experience the simplicity of compiling models, interacting with real-time simulations, and automating testsâeven if youâre new to HIL. Multi-unit HIL506 testbeds can simulate extensive systems with over a hundred power electronics converters, showcasing unparalleled performance. Â
Elevate your engineering excellence with the cutting-edge HIL operating system and stay ahead of the competition.Â
| HIL506 Technical Details | |
|---|---|
| Processor | Up to 6 core |
| Channels | 16 x Analog inputs (AI); 32 x Analog outputs (AO); 32 x Digital inputs (DI); 32 x Digital outputs (DO) |
| GDS Oversampling Resolution | 3.5ns |
| Resolution | 16 bit |
| Analog IO Voltage Range | ± 10 V |
| Built-in Scope | Yes |
| Connectivity | Ethernet; CAN; RS232; GPIO; HSSL; JTAG; USB 3.0 |
| Compatibility | HIL DSP Interface; HIL Breakout board; HIL dSpace Interface; HIL uGrid DSP Interface |
| Software | Typhoon HIL Control Center (THCC) |
Versatile Solution for Diverse Applications.
The HIL506 is a testament to our commitment to delivering integration, scalability, and versatility in every solution we provide. By adding this device to our HIL Simulators portfolio, we are able to better suit our customers’ needs, meeting the evolving demands of both industrial and academic users with unmatched precision and performance. This powerful and user-friendly device offers scalable solutions for a wide range of applications, making it an indispensable tool for modern power electronics systems.
Chief Technology Officer
