Texas Instruments Interface Cards
HIL TI Interface Cards or modules are specifically designed by our engineers to simplify Hardware-in-the-Loop (HIL) testing with a range of Texas Instruments microcontroller development kits. These interface cards directly connect HIL digital and analog input-output (I/O) pins with all the I/O pins on the controller board (e.g., encoder, resolvers, DACs, ADCs, CAN busses etc.) during HIL testing.
Plug-and-Play Interface Solutions for
Controller Development Kits.
Our specialized Typhoon HIL interface cards serve as the design and testing tool that enables control developers to start testing their MCU control code very early in the design process before there is actual controller hardware available. These simple interface boards with their PnP design are perfect tools to de-risk controller design and to accelerate controller development and deployment. These cards include various communication protocols, analog and digital interfaces, and other features necessary to interface with your specific hardware being tested.

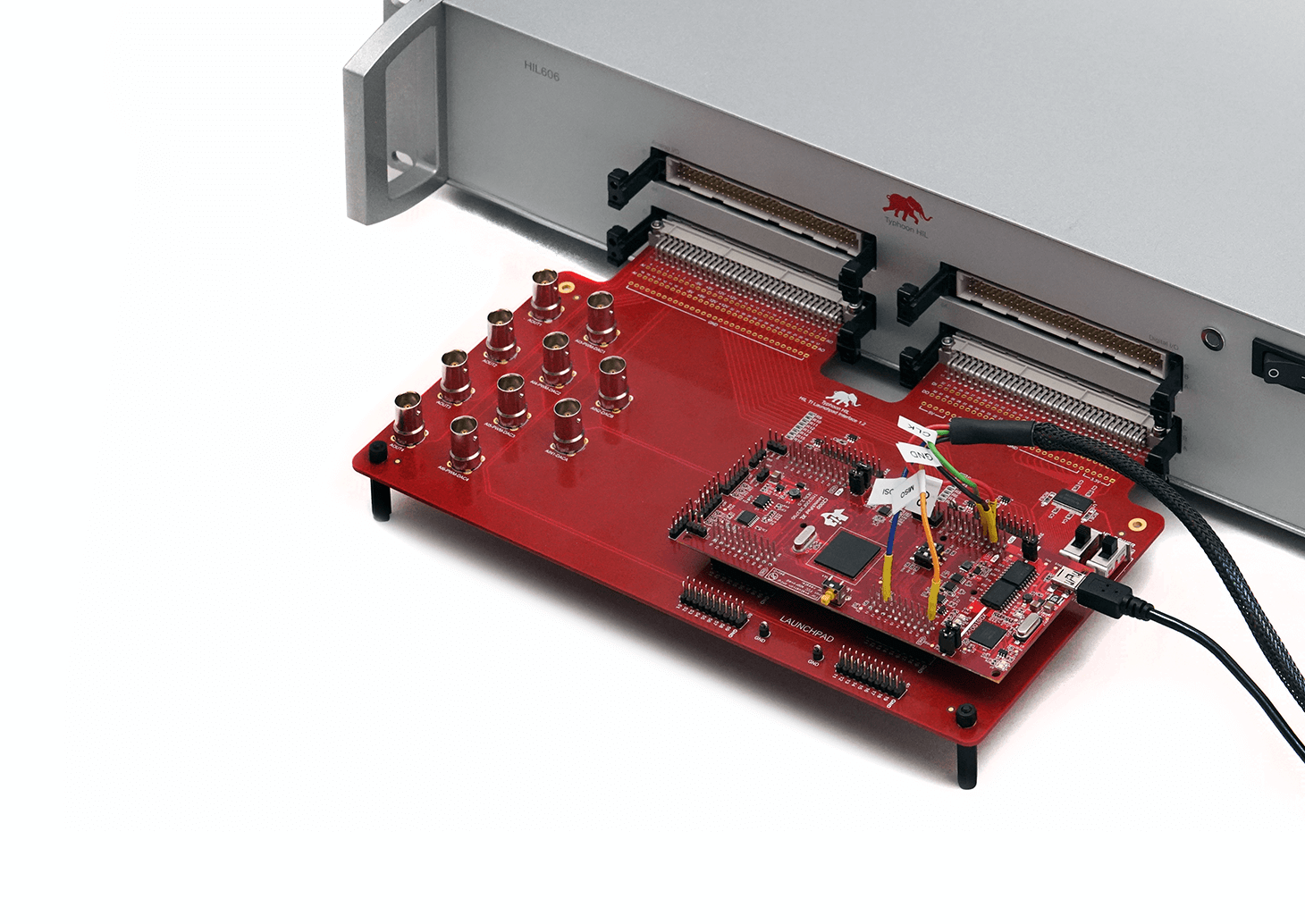

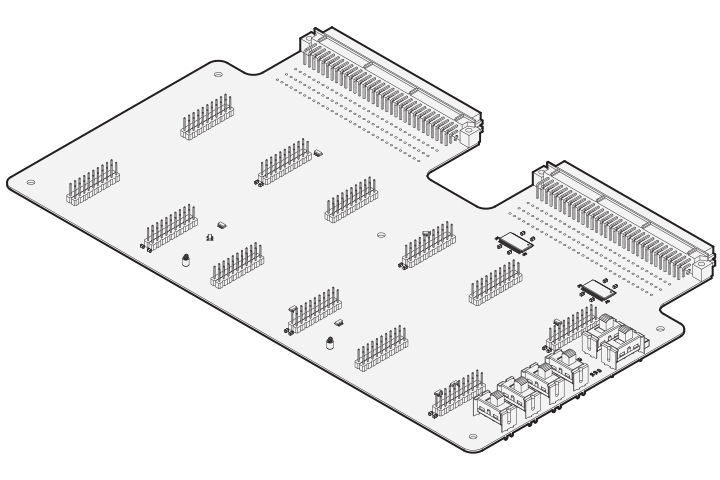

HIL TI LaunchPad Interface
Information about the HIL TI Launchpad Interface, an interface board which allows for connecting TI’s LaunchPadā¢ boards to Typhoon HIL simulators.

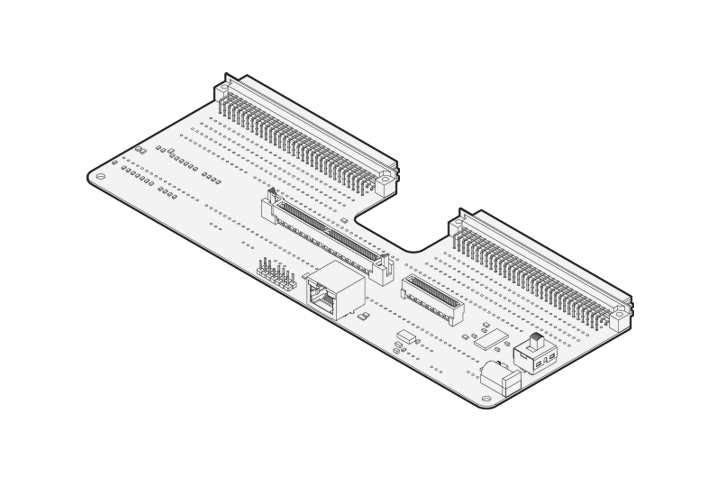

HIL TI DSP 180 Interface
Information about the HIL DSP 180 Interface, an interface board which allows for connecting Texas Instruments Control Card boards to Typhoon HIL simulators.
Create a C HIL setup with the HIL TI LaunchPad Interface Board
Watch this video demonstration of a C-HIL setup using Texas Instruments LAUNCHXL-F28379D LaunchPad and our HIL TI Launchpad Interface Board.
