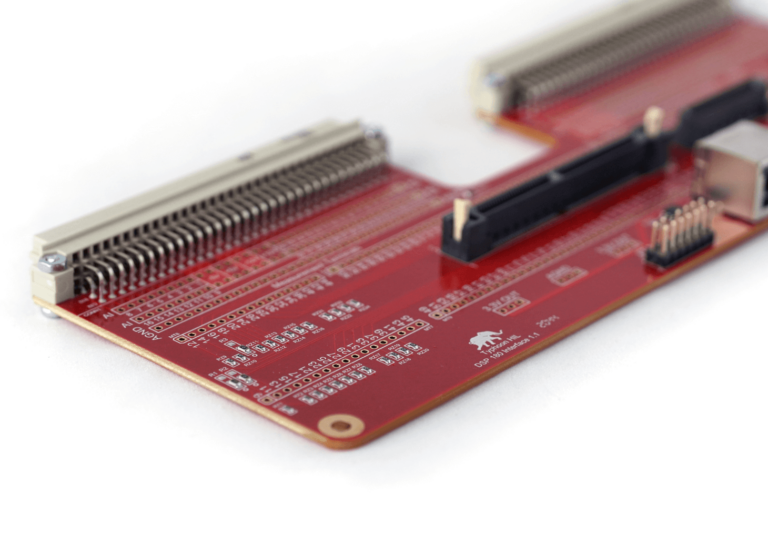

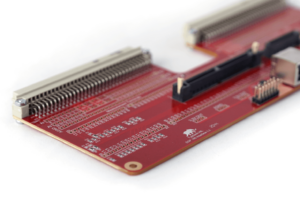

HIL TI DSP 180 Interface
Our Hardware-in-the-Loop (HIL) Digital Signal Processor (DSP) interface serves as a communication bridge between the DSP and the simulation environment, allowing real-time data exchange and control between the DSP and other components of the HIL setup, such as sensors, actuators, or control units.
Pin-to-Pin Compatible Interface
HIL TI DSP 180 provides a pin-to-pin compatible interface between Typhoon HIL emulators and Texas Instruments (TI) C2000ā¢ MCU controlCARDSā¢. In less than 5 minutes you can plug a HIL TI DSP interface to a Typhoon HIL simulator, map that signals, and deploy a closed loop control. Interface card is pin-to-pin compatible with:
- TMDSCNCD28379D ControlCARDā¢
- TMDSCNCD28388D ControlCARDā¢
- TMDSCNCD28025C ControlCARDā¢
- TMDSCNCD280039C ControlCARDā¢
- TMDSCNCD280049C ControlCARDā¢
- TMDSCNCD2800137Ā ControlCARDā¢
- TMDSCNCD2800157 ControlCARDā¢
- TMDSCNCD28P55X ControlCARDā¢
- TMDSCNCD28P65X ControlCARDā¢
Features and Benefits
An added bonus for our customers utilizing this specialized hardware interface integration allows them to focus on DSP control code development, without worrying about schematic and printed circuit board (PCB) design. Additionally, all required protocols, such as JTAG and UART, are available and accessible through this interface.
- A total of 64 TI control card pins connected to HIL
- Easily accessible measurement terminals, for monitoring all DSP and HIL signals
- Standard 13 pin 2.54 mm JTAG connector
- RJ45 connector for CAN bus
- DC jack connector, for board power in standalone use cases (without HIL device)
