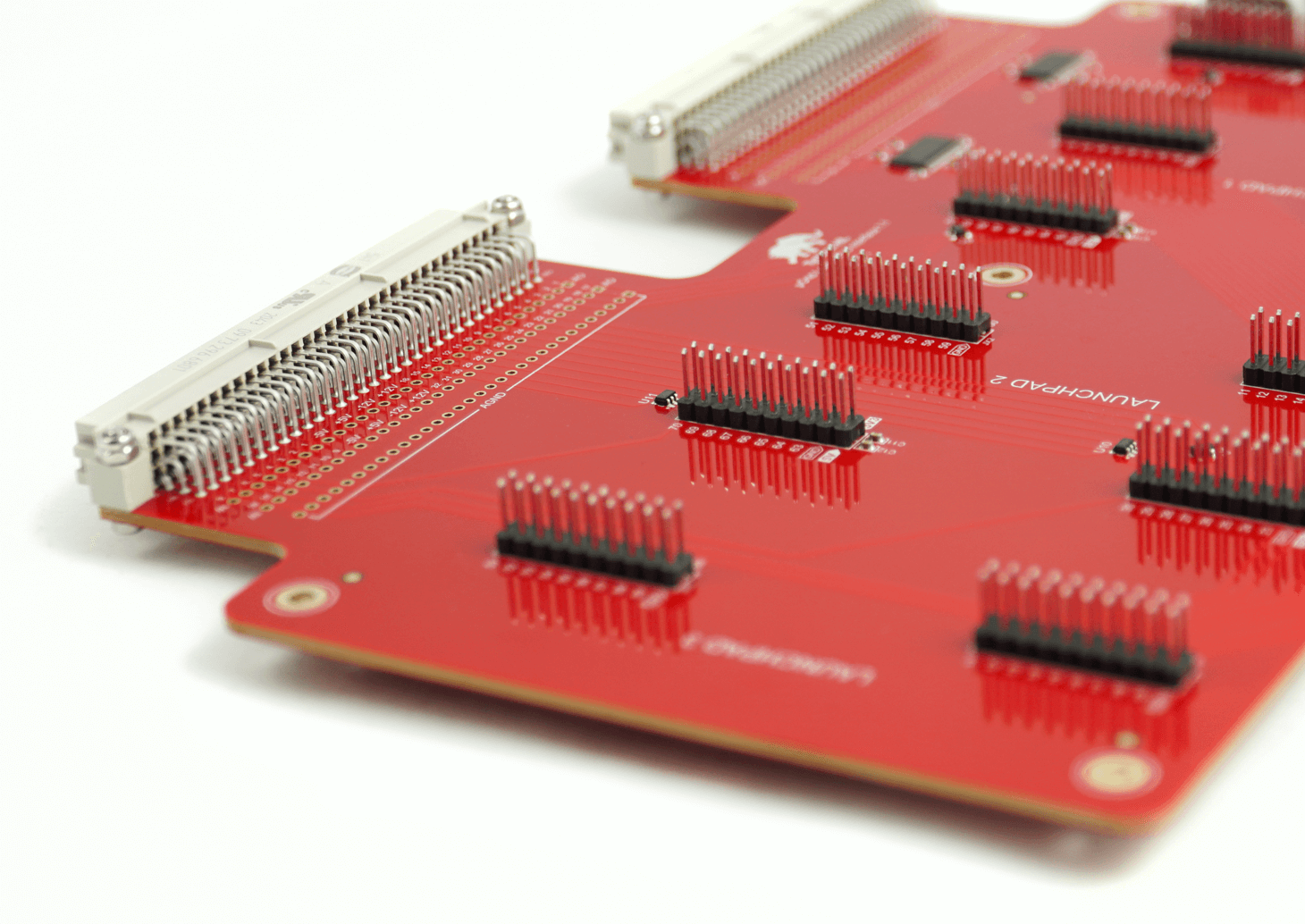

HIL TI μGrid LaunchPad Interface
The HIL TI Launchpad Interface provides a pin-to-pin compatible interface between Typhoon HIL emulators and up to three C2000 Launchpad boards. In less than 5 minutes you can plug a TI Launchpad into a Typhoon HIL real-time emulator, map the signals, and run models with closed loop control.
Start testing your control algorithms in no time.
Up to three supported TI Launchpad Interfaces can be connected to any Typhoon HIL emulator, without cables or external power supplies. You can now focus on DSP control code development, instead of hardware interface development.

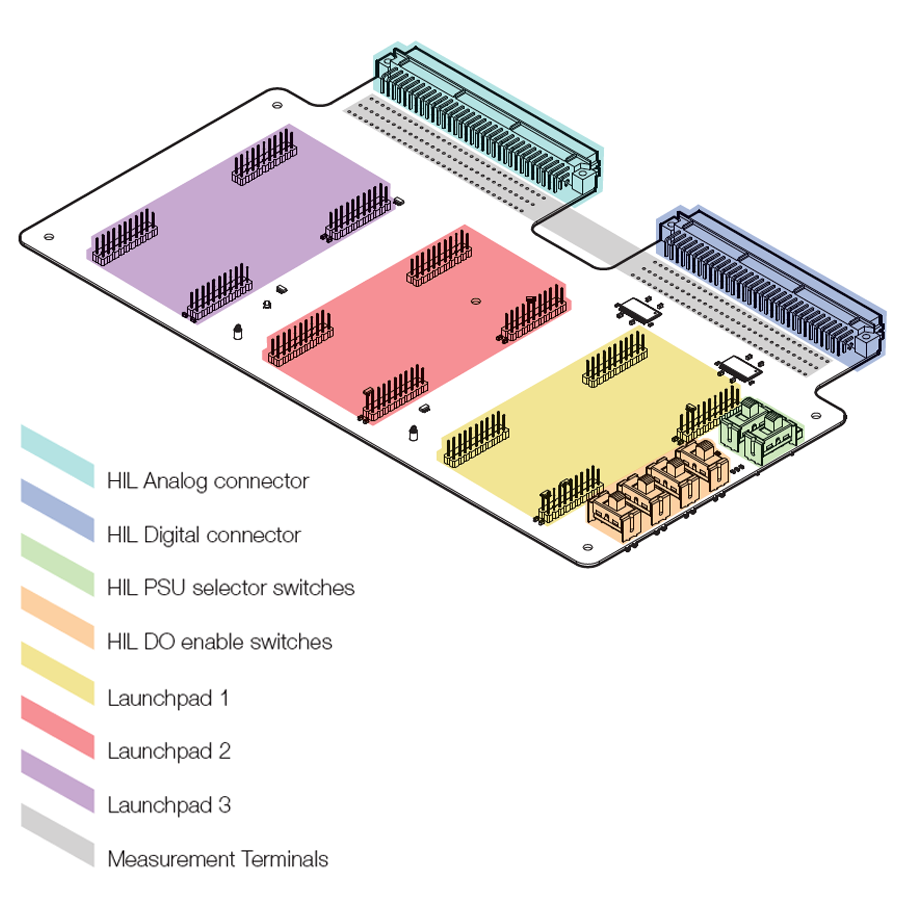

Features and Benefits
- Headers for 3 TI LaunchPadTM boards
- Easily accessible measurement terminals, for monitoring all DSP and HIL signals
- 32 HIL Digital Inputs
- 32 HIL Digital Outputs (level shifted down to 3.3V)
- 32 HIL Analog Outputs (clamped to 3.3V)
- 16 HIL Analog Inputs
