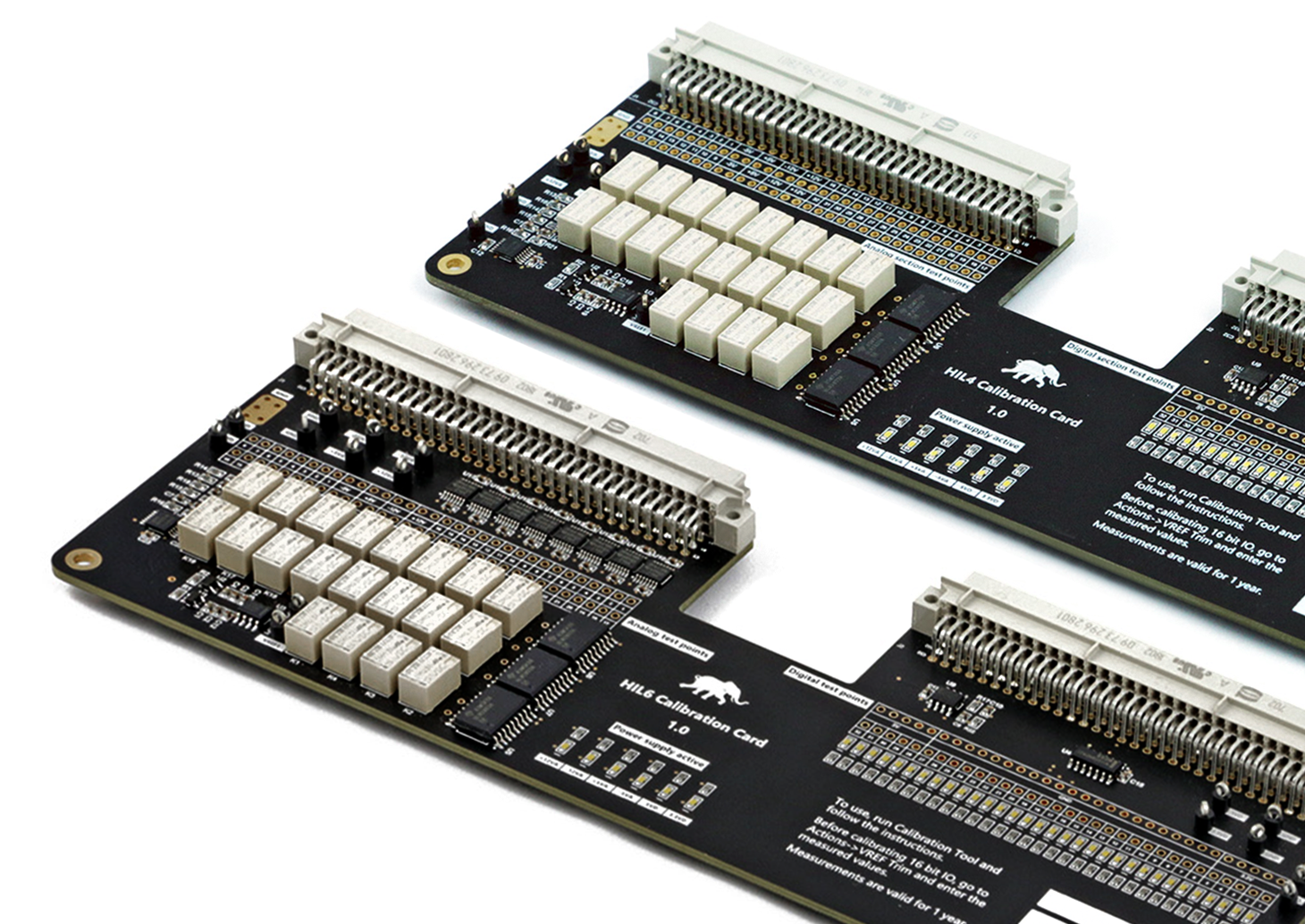

HIL Calibration Cards

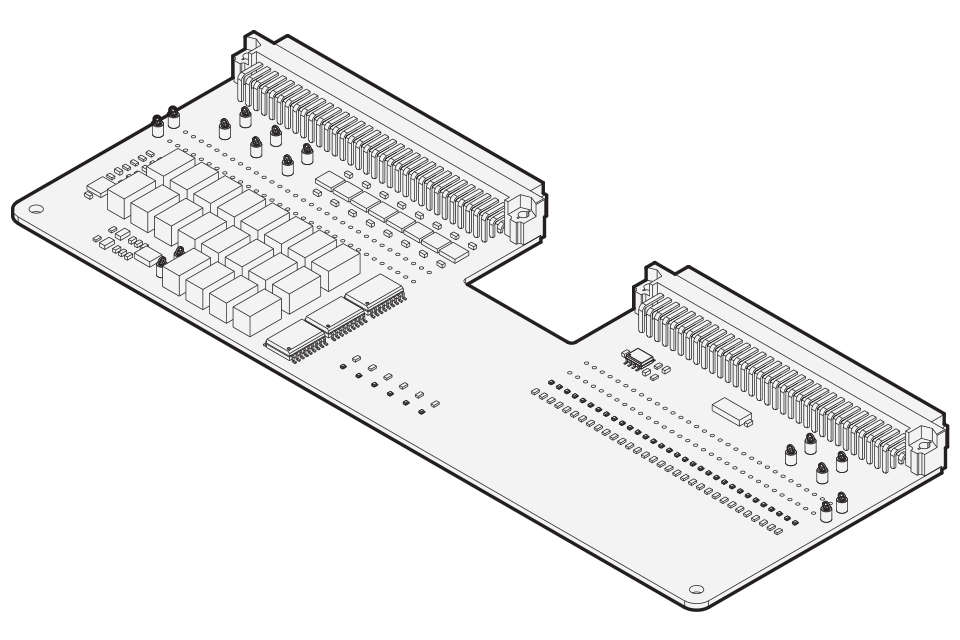

While all HIL devices are factory-calibrated, over time, due to component aging and drift, the HIL I/O stage may exhibit some small gain and offset errors. The HIL4 Calibration Card and HIL6 Calibration Card are designed to help remove these errors via a single-click calibration routine.

Ideal Sandbox for Power Electronics Control Development

In less than 5 minutes, you can connect your dSPACE rapid control prototyping (RCP) hardware to a Typhoon HIL real-time simulator, map all the signals, adjust scaling gains, build a real-time simulation model in Typhoon Schematic Editor, click compile and start running real-time simulation with the closed loop control.

If you are using dSPACE MicroLabBox for RPC, you only need a HIL dS Interface (Type-A, Type-B or Type-C) and one of our ultra-high fidelity real-time HIL emulators to start ā€œtest drivingā€ your controller. HIL dS Interface cards provides a pin-to-pin compatible interface between all Typhoon HIL emulators (4-Series and 6-Series) and the dSPACE’s MicroLabBox, top panel variant, as well DS1103 and DS1104 controllers.

Take advantage of our vast array of ultra high-fidelity power electronics and electric motor models to validate the performance of your controller under any condition, including faults.

This helps you to:

  • Start testing and validating your dSPACE MicroLabBox rapid control prototyping code early
  • Test early and test often
  • Start preparing test scripts early in the design phase

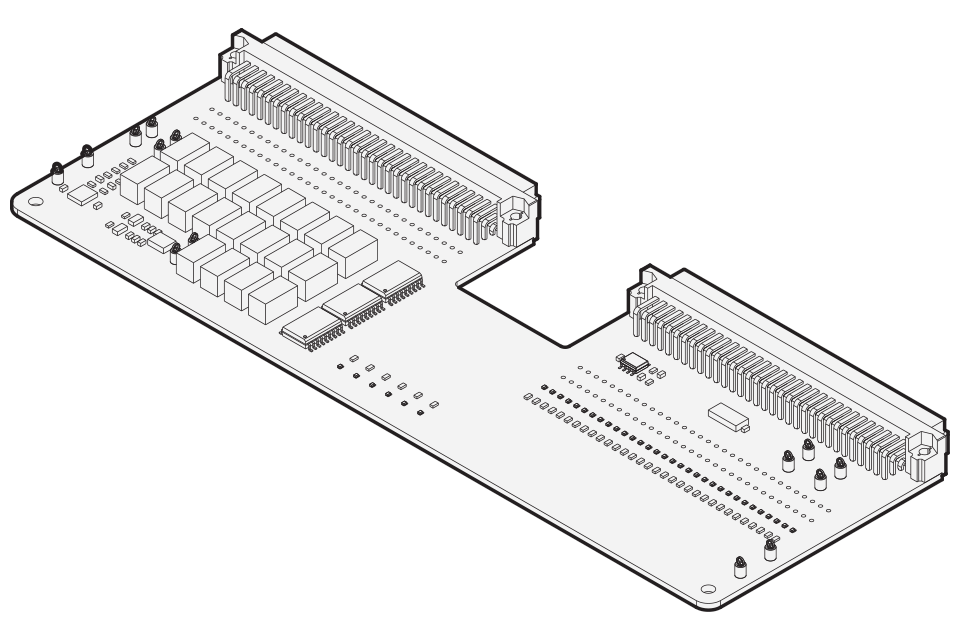

HIL4 Calibration Card

Information about the HIL dS Type A Interface, designed to seamlessly work with all Typhoon HIL emulators (4-Series and 6-Series) and the dSPACE’s MicroLabBox, front panel variant.

HIL4 Calibration Card

Information about the HIL dS Type B Interface, designed to seamlessly work with dSPACE MicroLabBox BNC variant and DS1103 with CP1103 connector panel devices.

May 19, 2021

Typhoon HIL and dSPACE
co-simulation

Typhoon HIL and dSPACE co-simulation of converter with active power decoupling circuit. Presenter is Prof. Sung Min Park from Advanced Power Conversion Lab, Hongik university, South Korea. HIL402 is used for power stage simulation while dSPACE Scalexio is used for controller RCP.
