How to create a library

This section describes how to create a library

A library is created similar to schematic model.

To create a new library model, use the File → New → Create a new library action, (or use the Ctrl+Shift+N keyboard shortcut).

Figure 1. Create new library action in File menu

A library is saved in a file with the *.tlib extension in contrast with schematic models which have the *.tse extension.

You should define a user library name when creating a new user library. This will be the name of the item that will appear in the component tree for your library components.

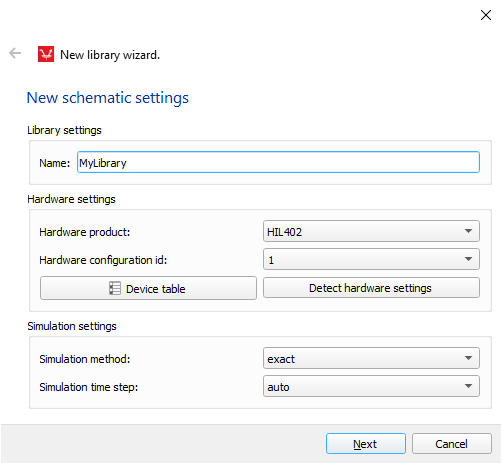

Figure 2. New library wizard with field for defining user library name
