Quick insert dialog

Description of the Quick Insert dialog feature in Schematic Editor that allows for quickly finding and inserting new components into your model.

Quick Insert is a feature that allows you to double-click on the canvas background and quickly search for components by their name. You can search all components available in the Library Explorer, regardless if they are from the core library or a user-defined library.

After selecting a component (by clicking or pressing Enter), the component will appear in the schematic at the location you opened the dialog box.

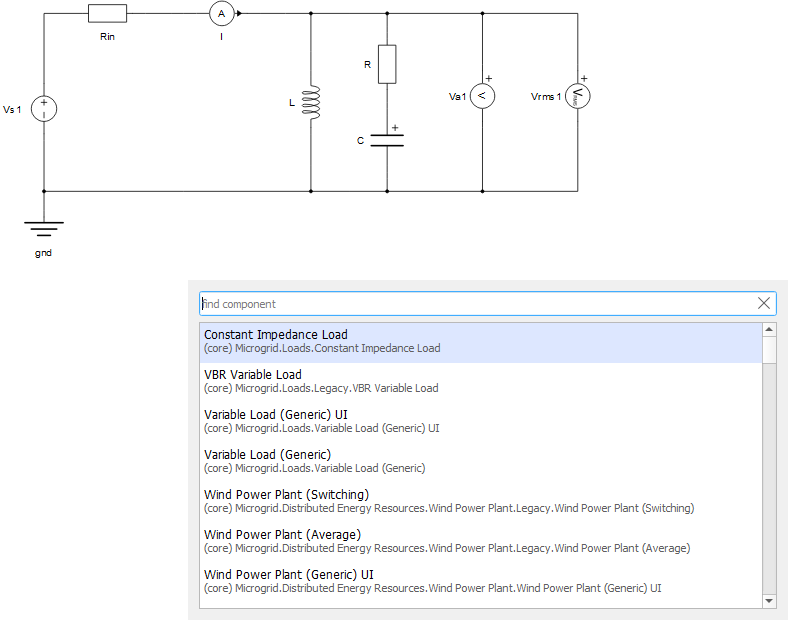

Figure 1. Process of adding a component through the Quick Insert dialog
