Generating an API script from a selection

Generating a script

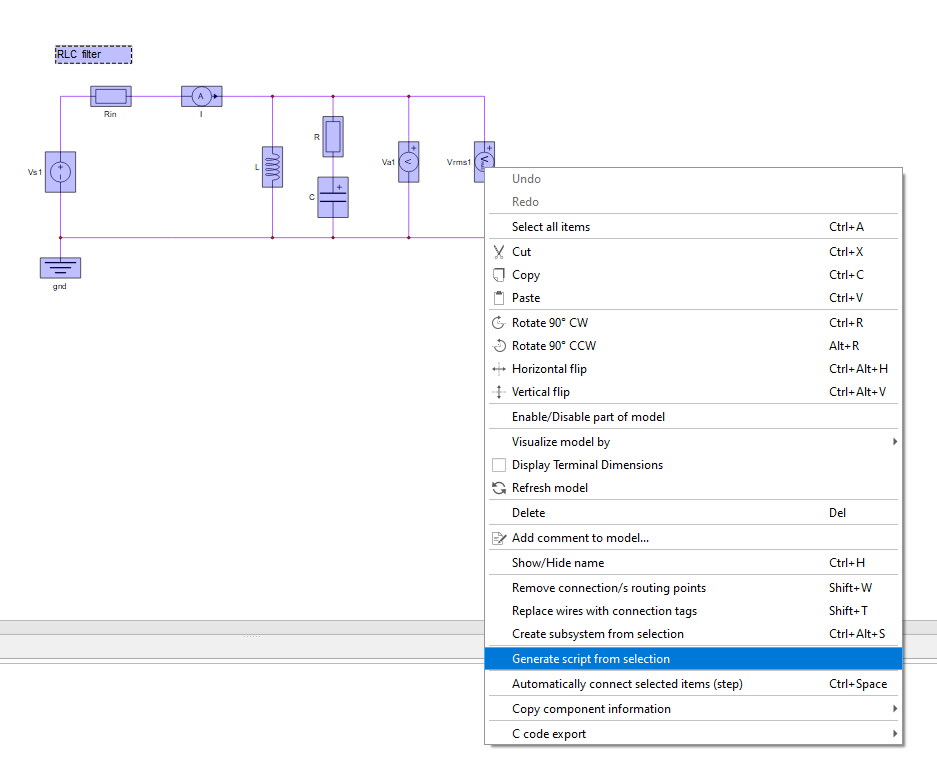

In Schematic Editor, an API script can be generated from selection of components. By clicking the Generate script from selection option on the right-click menu (Figure 1), the generated code is copied to the clipboard.

Generated code examples

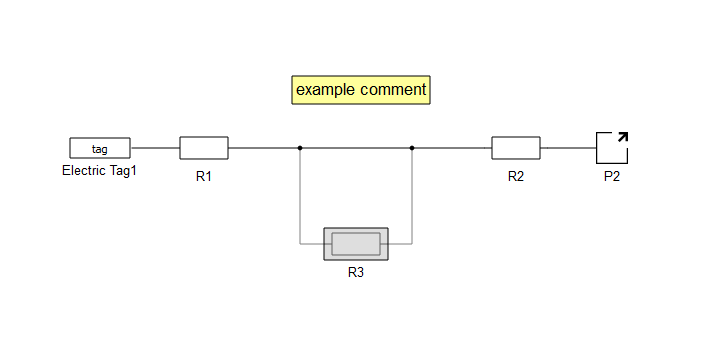

An example of a selection is shown in Figure 2.

The generated code is split into 10 sections:

• Parent assignment

  #
  # Get the parent handle
  #

  try:
      # Cover property handlers (property_value_changed, property_value_edited...)
      parent = mdl.get_parent(container_handle)
  except:
      # Cover component handlers (init, pre_compile...)
      parent = mdl.get_parent(item_handle)

• Removing created internal components function

  def delete_created_inner_components():
      #
      # Remove created components from parent
      #
      item_names = ["R1", "R2", "R3", "Junction1", "Junction2", "P2", "Electric Tag1", "Connection1", "Connection3", "Connection8", "Connection4", "Connection6", "Connection7", "Connection9"]
      for item_name in item_names:
          if mdl.exists(item_name, parent=parent):
              handle = mdl.get_item(item_name, parent=parent)
              mdl.delete_item(handle)

• Removing all internal components function

  def delete_all_inner_components():
      #
      # Remove all components from parent
      #
      for connection in mdl.get_items(parent=parent, item_type=ITEM_CONNECTION):
          mdl.delete_item(connection)

      for junction in mdl.get_items(parent=parent, item_type=ITEM_JUNCTION):
          mdl.delete_item(junction)

      for component in mdl.get_items(parent=parent, item_type=ITEM_COMPONENT):
          mdl.delete_item(component)

      for item in mdl.get_items(parent=parent):
          mdl.delete_item(item)

• Recreating components

  # Components:

  # Component: R1
  _r1 = mdl.create_component(
      type_name="core/Resistor",
      parent=parent,
      name="R1",
      position=(7512, 8064),
      size=(64, 32),
      layout="static"
  )


  # Component: R3
  _r3 = mdl.create_component(
      type_name="core/Resistor",
      parent=parent,
      name="R3",
      position=(7728, 8152),
      size=(64, 32),
      layout="static"
  )


  # Component: R2
  _r2 = mdl.create_component(
      type_name="core/Resistor",
      parent=parent,
      name="R2",
      position=(7912, 8064),
      size=(64, 32),
      layout="static"
  )

• Recreating junctions

  # Junctions:

  # Junction: Junction2
  _junction2 = mdl.create_junction(
      name="Junction2",
      parent=parent,
      position=(7800, 8064)
  )

  # Junction: Junction1
  _junction1 = mdl.create_junction(
      name="Junction1",
      parent=parent,
      position=(7648, 8064)
  )

• Recreating ports

  # Ports:

  # Port: P2
  _p2 = mdl.create_port(
      name="P2",
      parent=parent,
      label="",
      terminal_position=('right', 'auto'),
      flip=FLIP_HORIZONTAL,
      position=(8040, 8064)
  )

• Recreating tags

  # Tags:

  # Tag: Electric Tag1
  _electric_tag1 = mdl.create_tag(
      value="tag",
      name="Electric Tag1",
      parent=parent,
      scope=TAG_SCOPE_LOCAL,
      position=(7376, 8064)
  )

• Recreating comments

  # Comments:

  # Comment: Comment1
  _comment1 = mdl.create_comment(
      text="example comment",
      parent=parent,
      position=(7656, 7984)
  )


• Recreating connections

  # Connections:

  _connection1 = mdl.create_connection(
      start=_electric_tag1,
      end=mdl.term(_r1, "p_node"),
      name="Connection1",
      breakpoints=[]
  )
  _connection6 = mdl.create_connection(
      start=mdl.term(_r3, "p_node"),
      end=_junction1,
      name="Connection6",
      breakpoints=[]
  )
  _connection8 = mdl.create_connection(
      start=_junction2,
      end=mdl.term(_r2, "p_node"),
      name="Connection8",
      breakpoints=[]
  )
  _connection4 = mdl.create_connection(
      start=mdl.term(_r1, "n_node"),
      end=_junction1,
      name="Connection4",
      breakpoints=[]
  )
  _connection3 = mdl.create_connection(
      start=mdl.term(_r2, "n_node"),
      end=_p2,
      name="Connection3",
      breakpoints=[]
  )
  _connection9 = mdl.create_connection(
      start=mdl.term(_r3, "n_node"),
      end=_junction2,
      name="Connection9",
      breakpoints=[]
  )
  _connection7 = mdl.create_connection(
      start=_junction1,
      end=_junction2,
      name="Connection7",
      breakpoints=[]
  )

• Disabling items that were disabled in selection

  # Disable items:

  mdl.disable_items([
      _r3,
      _connection6,
      _connection9,
  ])
