Contactors settings

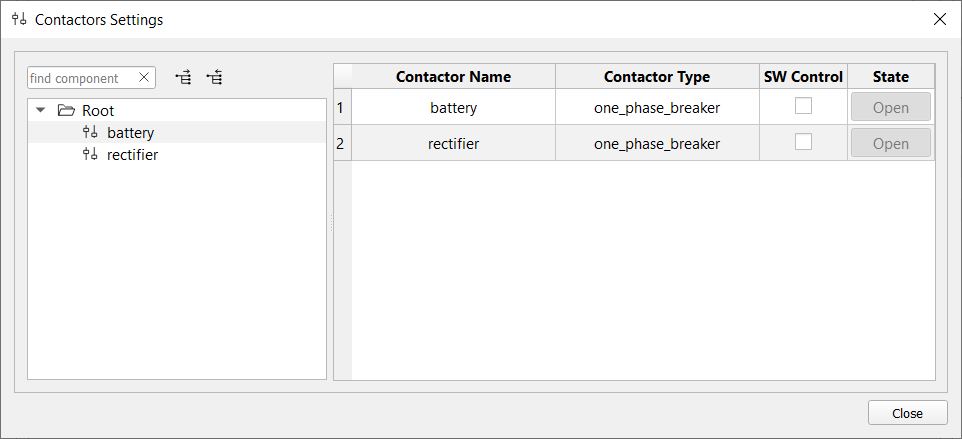

Controls all contactors in the model. Contactor names from model are displayed in the Name column, with their associated types displayed in the Type column. With the SW Control column checkboxes, you can select whether each individual contactor is to be controlled from the GUI or externally from a model-defined digital input pin. The default checkbox state is “not checked”, meaning that the contactor is controlled externally.

When the SW Control checkbox is checked, the corresponding State button becomes user accessible. In the user accessible mode, the State button button has two states that directly correspond to contactor states: open and closed.
