Model Settings Dock

This section describes model settings dock

To control simulation inputs and outputs you can use various controls available from Model Settings Dock.

Note: Loaded Model can be changed either from the corresponding Model Settings section or from the Action widgets in active Panel.

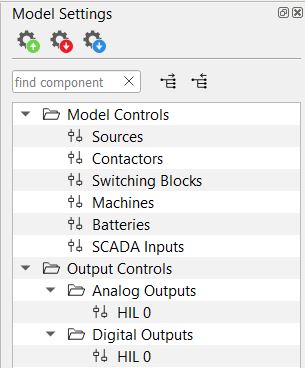

Figure 1: Model Settings Dock



Depending on what they control, simulation controls can be divided into two sub-elements:

Note: To open Model Settings configuration window of a particular model section double click the tree item.
Note: When Model settings configuration window is visible it will periodically update itself in case corresponding Model is updated in the background (for example, from the Action widgets).
