Egston SFP Link

This section provides basic information regarding accessing and communication between Typhoon HIL device and EGSTON COMPISO Amplifier System.

This component transmits and receives data over the SFP port (upper port on HIL404 and HIL606 devices - HW setup) using Egston SFP Link protocol and provides the link status. The output port of the Egston SFP Link component provides the Egston SFP Link physical status where one (1) means that the link is up.

Important: Egston SFP Link and SFP Simulation Link are mutually exclusive on HIL404 devices as they use the same SFP port!

Typhoon HIL Implementation

Currently, Egston SFP Link is supported by the following devices:HIL404 and HIL606 (via custom firmware configuration only).

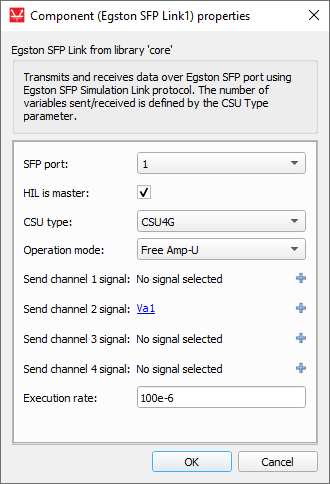

Table 1. Egston SFP Link component
Component	Component dialog	Component properties
Egston SFP Link		HIL is master CSU type Operation mode Send channel signal Execution rate

Component properties are described in Table 2.

Table 2. Egston SFP Link properties
Property name	Description
HIL is master	Allows to select if HIL is master or slave.
CSU type	This property allows you to choose group of 4 or 6 amplifiers, GAMP4 or GAMP6, respectivley.
Operation mode	Allows you to select desired operation mode, which is defined by CSU/GAMP type, the Application type and the source type.
Send channel signal	Depending on the CSU type you will either have 4 or 6 channels. These properties allow you to select signals from the model which you want to send to Egston device.

Ports

Input (sfp_reset_n)
- Negative reset. Value which resets Egston SFP communication.
  - Supported types: uint, int, real.
  - Vector support: no.
Input (pwm_enable)
- Value which enables or disables Egston component send channels.
  - Supported types: uint, int, real.
  - Vector support: no.

Output (link_status)
- Output of the component is the physical link status.
  - Supported types: uint, int, real.
  - Vector support: no

Virtual HIL support

Virtual HIL currently does not support this protocol. When using a Virtual HIL environment (e.g. when running the model on a local computer), inputs to this component will be discarded and outputs from this component will be zeroed.
