Electric circuit partitioning

This section describes the general motivation for electrical circuit partitioning and gives some practical guidelines for using it in your model.

Note: An interactive overview of the concepts and/or capabilities described here are available as part of the HIL Specialist 2.0 certification program on HIL Academy, as well as in the video Knowledgebase.

The core motivation for performing electric circuit partitioning is to enable parallel computing of complex power electronics and power system models that usually contain large number of switches. To demonstrate the benefits of this, we will use the example of a two-level back-to-back converter shown in Figure 1.

Converters are modeled using ideal switches, where a combination of a controllable switch (IGBT) and an anti-parallel diode are represented as one switch. The two-level back-to-back converter consists of two three-phase two-level converters, and each of them contains six switches.

Each switch permutation is represented by a linear time-invariant (LTI) state space matrix. For the circuit presented, that contains 12 switches, the number of permutation is 212 = 4096. In this case, 4096 state space matrices have to be stored. The memory capacity required to store the matrices rises exponentially as a function of number of switches.

If the circuit is split in two circuits, where each of them are executed on separate processors, or separate cores of a same processor, then the overall number of switch permutations per core is 26 = 64, and the overall number of matrices to be stored for both circuits is 2x64 = 128. This is significantly less than the 4096 required for one circuit.

On other hand, the time needed to simulate the circuit depends on the size and density of the state space matrices. If the full circuit is split, the matrices per core will be smaller, hence faster simulation rates can be achieved.

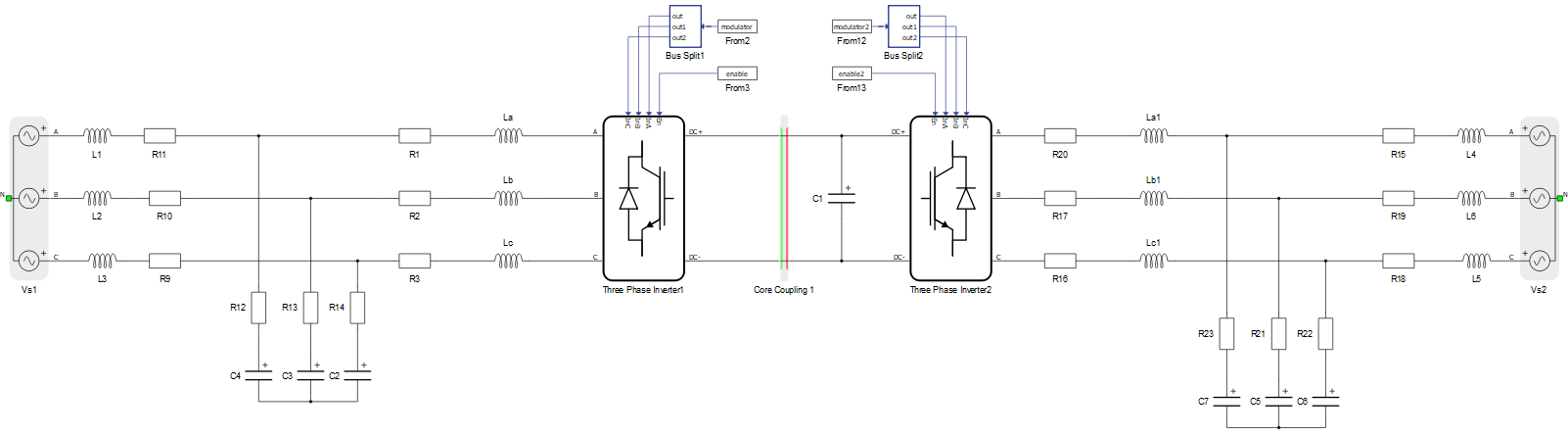

Figure 1. Two-level three-phase back-to-back converter
