Package actions

Overview of the package actions and how you can interact with them.

In this panel there are actions for package manipulation, such as Uninstall, Reinstall, View documentation, and more.

Depending on the current active tab, available actions may vary. Figure 1 shows actions for an installed package, and Figure 2 shows actions for packages available on the Marketplace.

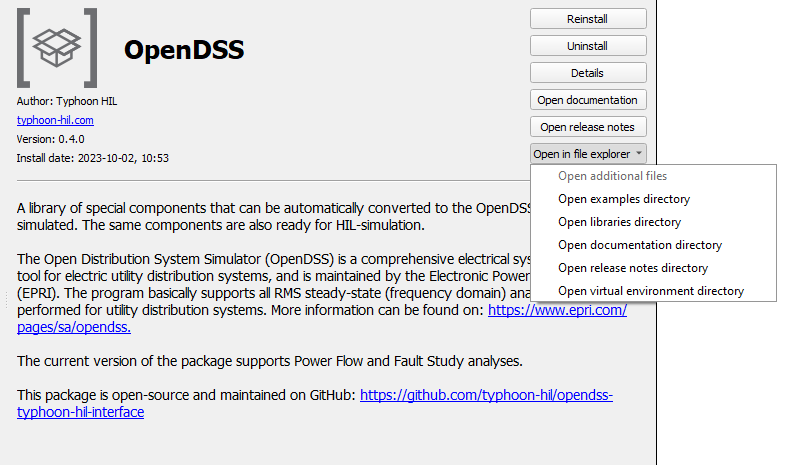

Figure 1. Package actions Interface - Installed

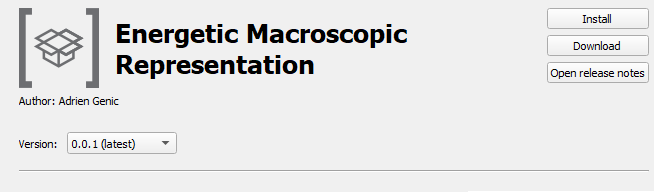

Figure 2. Package actions Interface - Marketplace

The installed package actions include:

Reinstall package and return it to its default state
Uninstall package and completely remove it from disk
Open the Package details dialog
Open the package's documentation landing page
Open the package's release note page
Open package-specific folders in file explorer, such as examples, libraries, etc.

The Marketplace package actions include:

Download and install package
Download package
Download and open the package's release note page
