Plot area

This section describes plot area

The Plot area is the main section in the source generator tool. It displays the generated signals and allows the user to directly manipulate signal data (on the point level) by selecting points, moving one or multiplying selected points, dis-annulling selected points, and so on. The appropriate context menu (Figure 1) is available by right-clicking on the plot area. This menu contains various plot mode commands that are explained in the following section.

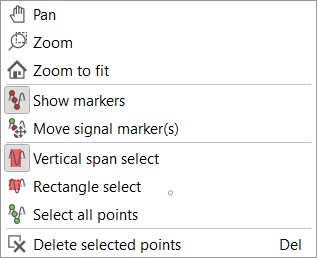

Figure 1: Right click context menu
