Import I-V mode

This section describes Import I-V mode

The Import I-V mode allows for importing a .csv file that contains pairs of x- and y-data (each value and each pair is separated by a comma: comma-separated values) which represent an arbitrary I-V curve. After the .csv file is loaded, both I-V and P-V curves will be generated and displayed. The imported I-V curve can be saved in a custom .ipv file format which can be attached to a PV source in HIL SCADA later.

Note: Data inside a .csv file must contain at least 4 elements per X and Y axis.

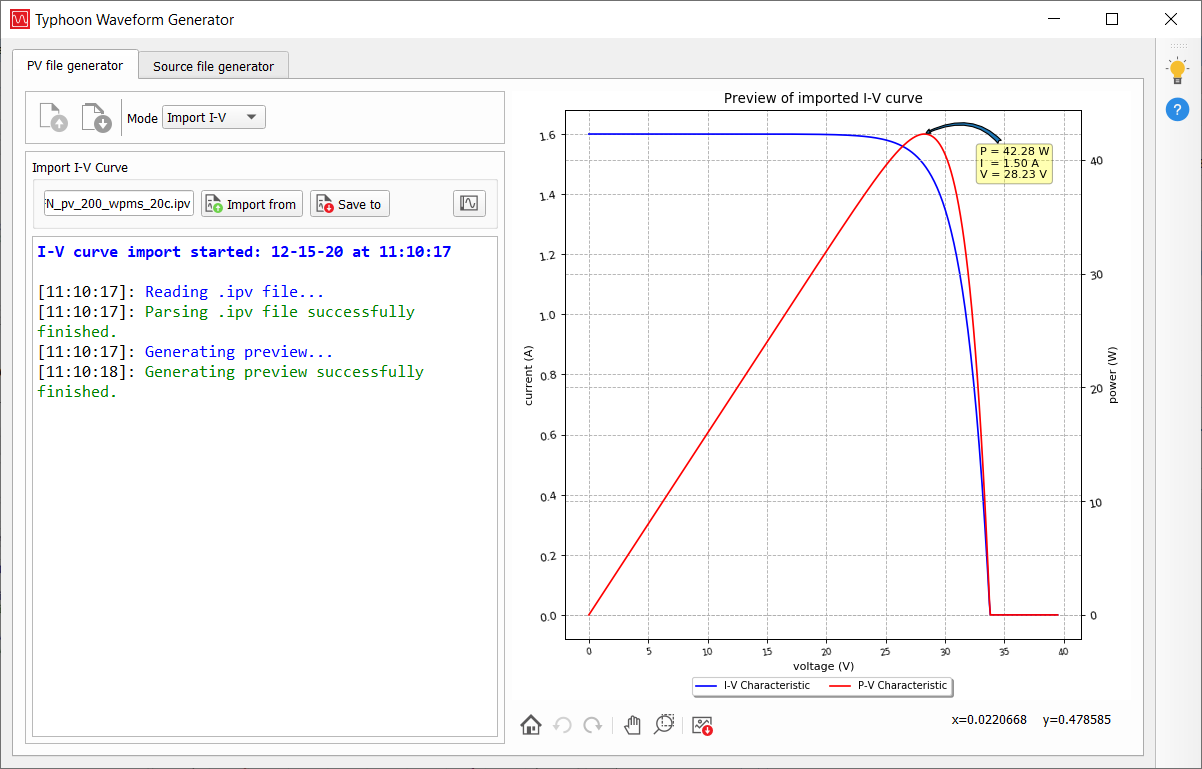

Figure 1. The Import I-V mode is selected
