Current Output card

Description of the Current Output card for HIL Connect hardware

Current Output card

Note: For more information on how to configure your card in Typhoon HIL Control Center, please refer to the Current Output Card parametrization documentation.

The Current Output card provides 8 current outputs linked to 8 HIL AO channels. Specifically designed for current sensor emulation purposes, it utilizes linear technology to ensure low-noise operation and high accuracy.

Current Output card revisions

Table 1. Card revisions
Code Revision Part number
JU 2.2 23270

Current Output card hardware specification

Table 2. Hardware Specification
Parameter Value
Type Current output
Number of channels 8
Input signal range ±10 V
Output signal range ±2.83 A
Compliance range ±2 V
Bandwidth (-3dB) DC to 120 kHz
Accuracy 1% + 5 mA
Isolation No

Current Output card hardware settings

Table 3. Hardware Options
Option Method Possible options
Drive channel selection, in groups of 8 Via internal DIP switches Card driven from:

HIL AO1..8, or

HIL AO9..16, or

HIL AO17..24, or

HIL AO 25..32

Current Output card connector data

Table 4. Connector data
Parameter Value

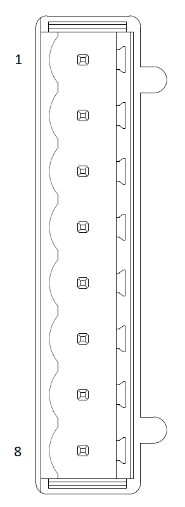

Connector outline
PCB connector part number 1155640000
Mating connector part number 1013490000

Current Output card pinouts

Note: The following pinouts assume a AO1..8 hardware setting. If another setting is applied, this pinout also changes, e.g. AO9-15.
Table 5. Pinout - X1
Connector Pin Rating Related HIL channel
X1 1 ±2.83 A AO1
X1 2 - GND
X1 3 ±2.83 A AO2
X1 4 - GND
X1 5 ±2.83 A AO3
X1 6 - GND
X1 7 ±2.83 A AO4
X1 8 - GND
Table 6. Pinout - X2
Connector Pin Rating Related HIL channel
X2 1 ±2.83 A AO5
X2 2 - GND
X2 3 ±2.83 A AO6
X2 4 - GND
X2 5 ±2.83 A AO7
X2 6 - GND
X2 7 ±2.83 A AO8
X2 8 - GND
