Mechanical

Mechanical dimensions of the HIL Connect.

Table 1. HIL Connect mechanical information
Width (without 19" rackmount handles) W1 448 [mm]
Width (including 19" rackmount handles) W 482.4 [mm]
Height H 266 [mm] - 6U
Depth (without 19" rackmount handles) D1 308.4 [mm]
Depth (including 19" rackmount handles) D 347.4 [mm]
Weight 12 [kg]

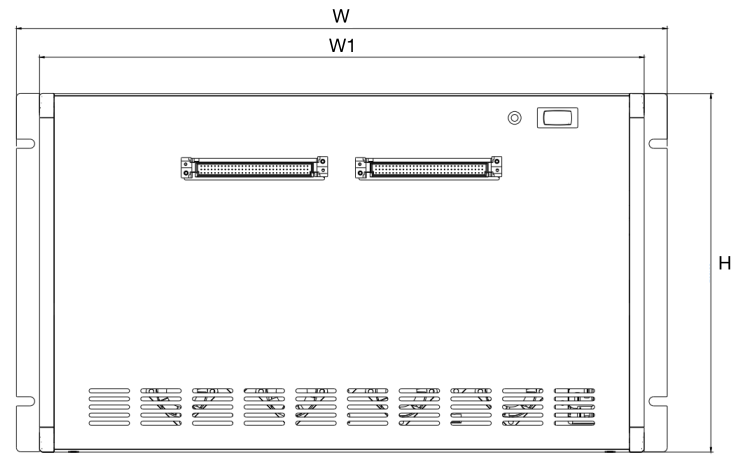

Figure 1. HIL Connect dimensions [mm] - front view

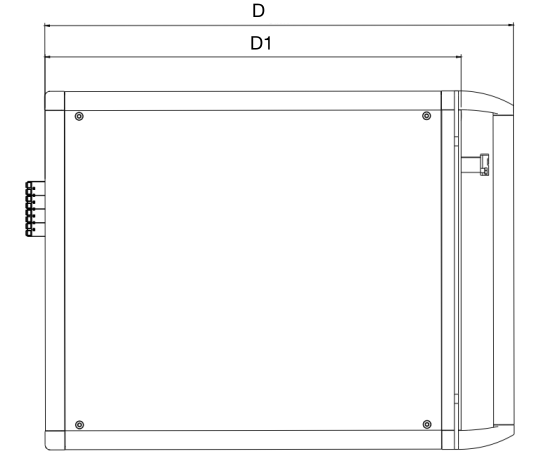

Figure 2. HIL Connect dimensions [mm] - side view
