Containers

Description of how Docker containers can be managed via the Computer tab in the Devices section of Typhoon Test Hub.

The Containers tab provides basic information on the Docker containers available for the selected Computer. Additional information about containers and logs can be seen in the detailed view of a selected Container (Figure 2).

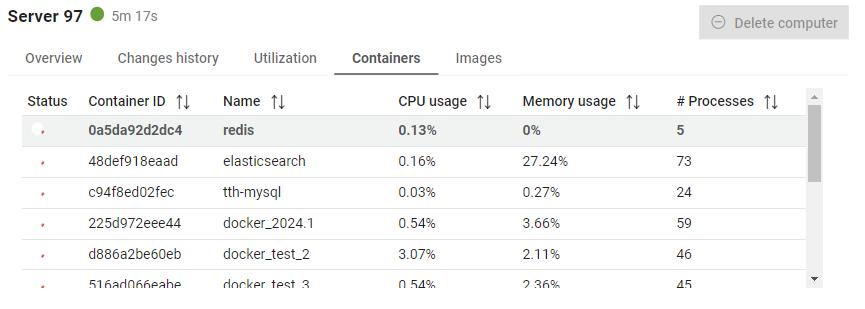

Figure 1. Containers table

The Containers table shows the following information:

  1. Status: Created, Running, Restarted, Exited, Paused and Dead.
  2. Container ID
  3. Name
  4. CPU usage [%]
  5. Memory usage [%]
  6. Number of Processes
Note: By clicking on the button, columns of the table can be customized - hidden or shown depending on the preference. Columns of the table can be reordered by using drag and drop in the table header. When positioning cursor in between two columns, cursor for column resizing will show and enable change of the column's width. All changes made to the table will be automatically preserved.

By clicking on a specific container, you get a popup that shows more details on that container.

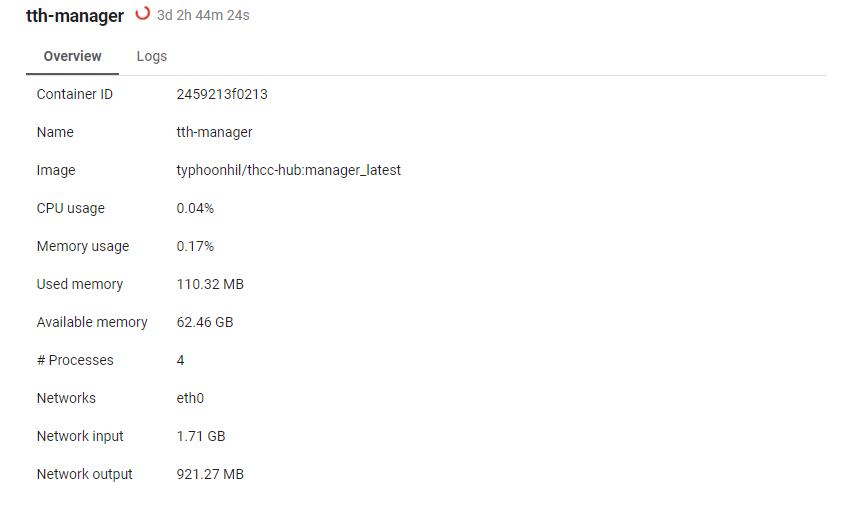

Figure 2. Container details
In the details section, you can find:
  1. Overview tab: Basic information about the selected container is displayed, as shown in Figure 2.
  2. Logs: Logs from the selected container are displayed.
