Layout

General layout of the HIL Breakout Board

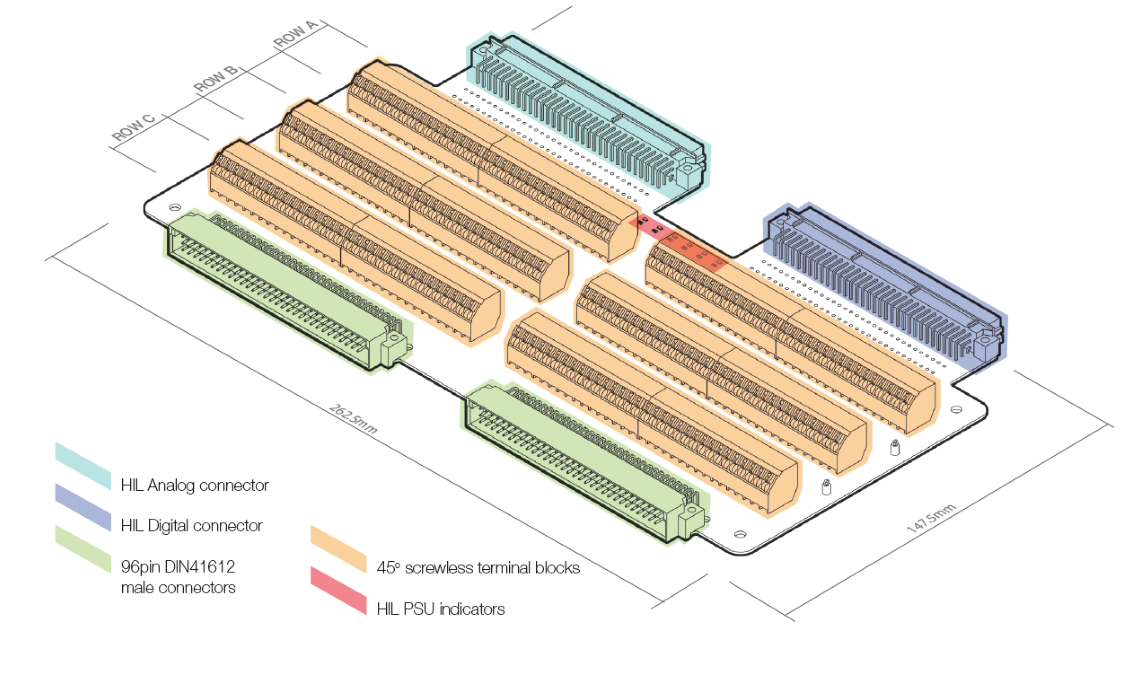

The board features the following key sections, as shown in Figure 1.

HIL Analog connector (female)
HIL Digital connector (female)
HIL User Power Supply activity indication LEDs
Push-in, spring cage terminal block array
Passthrough HIL Analog connector (male)
Passthrough HIL Digital connector (male)
