Overview

Overview of the purpose and connectivity of the HIL TI Launchpad Interface

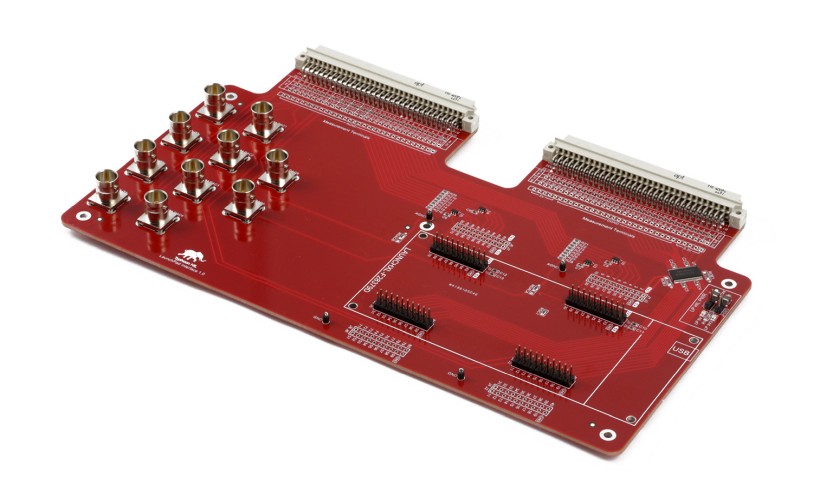

The HIL TI Launchpad Interface is an interface board, designed to enable a seamless interface between TI's LaunchPad™ development kits and any of the HIL4 and HIL6 series devices.

Features:

Headers for one LaunchPad™ board
All HIL and LaunchPad™ signals available through measurement terminals
5V and 3.3V power supply jumpers (HIL or LaunchPad™) with LED indication
16 HIL Digital Inputs (including DSP’s PWM signals)
16 HIL Digital Outputs (level shifted to 3.3V)
16 HIL Analog Outputs (clamped to 3.3V)
4 HIL Analog Inputs

“Texas Instruments“, “TI“, and "LaunchPad™" are registered trademarks of Texas Instruments Incorporated in the United States of America, or other countries, or both.
