Overview

Overview of the purpose and connectivity of the HIL Nucleo-64 Interface board

The HIL Nucleo-64 Interface is an interface board, designed to enable a seamless interface between STM32F3xx and STM32G4xx families of Nucleo-64^TM development kits and Typhoon HIL simulator devices.

Features:

Sockets for one Nucleo-64™ board
All HIL signals available through measurement terminals
12V HIL power supply as Nucleo-64™ external power supply input (Nucleo-64™ JP5 selection)
18 HIL Digital Inputs (2 of which can be repurposed as HIL AI/AO)
9 HIL Digital Outputs (8 level shifted to 3.3V, 1 of which can be repurposed as HIL AO/AI and 1 Nucleo-64™ Open-Drain Reset)
16 HIL Analog Outputs (+/-10V scaled to 0-3.3V, 3 of which can be repurposed as HIL AI/DI)
UART on a pair of HIL DI/DO pins with LED indication

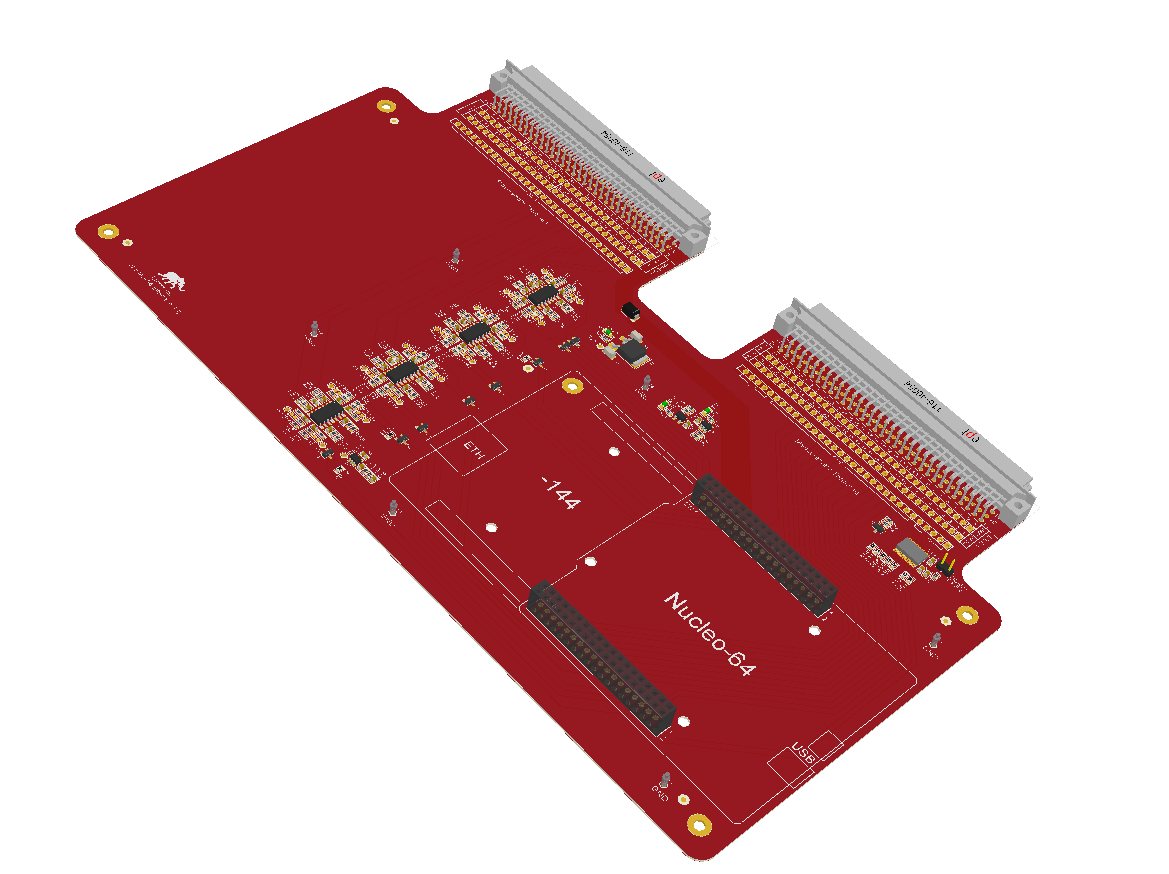

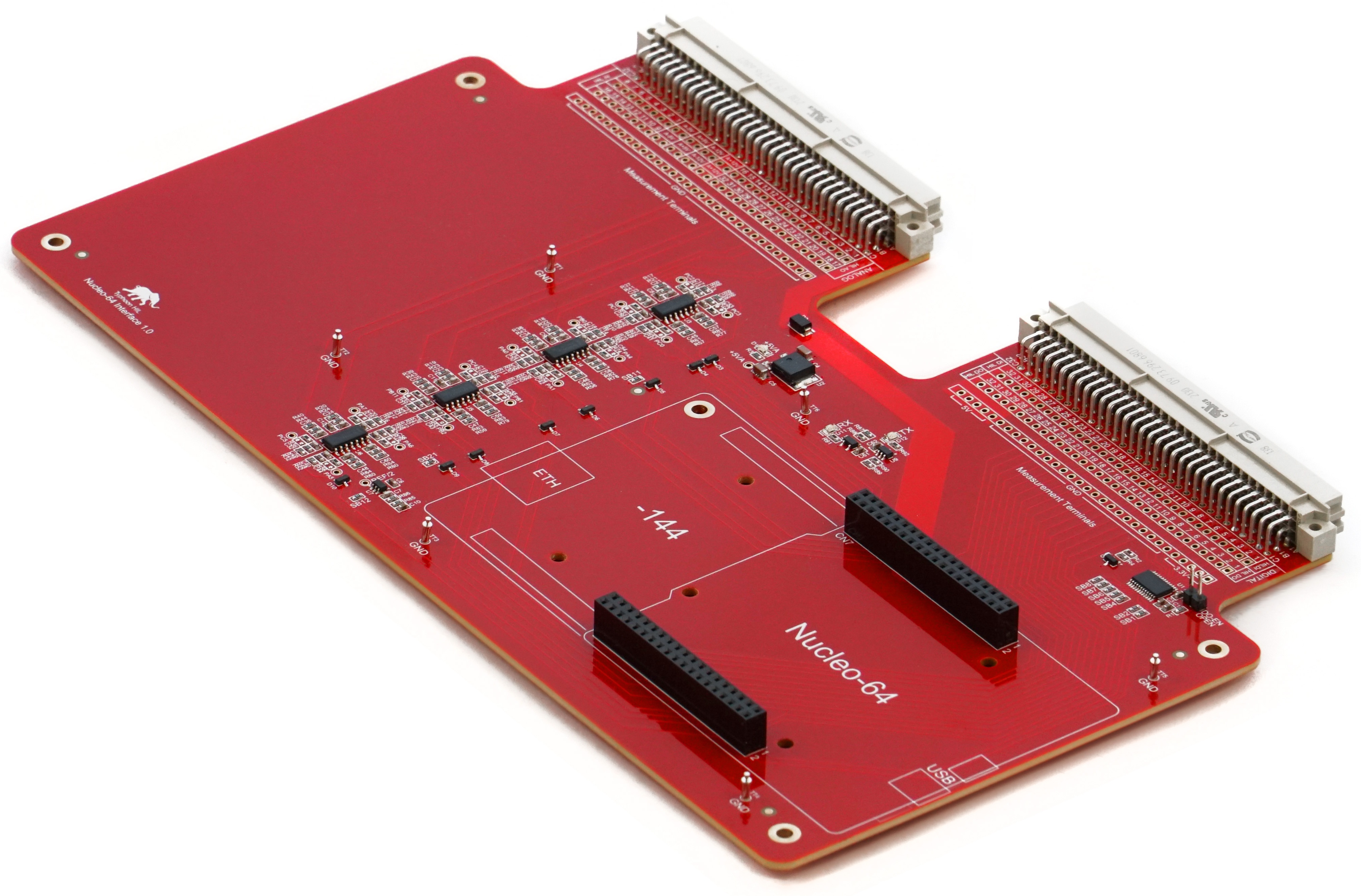

Figure 1. HIL Nucleo-64 Interface board

"Nucleo-64^TM", "Nucleo-144^TM", "STM32", and "STM32 Nucleo" are registered trademarks of STMicroelectronics International NV or its affiliates in the USA (US Patent and Trademark Office) and/or other countries.
