How to use the VBR PMSM in non-linear mode?

Question

I am trying to create a simulation using a non-linear PMSM VBR in TyphoonSim, but when I try to use this model in non-linear mode to use the LUTs of flux vs current, TyphoonSim gives the following error: Validation was not completed successfully! Some components in this schematic aren't available for TyphoonSim simulation. For more information, check the model information dialog. The model in question is the PMSM VBR.

Answer 1

Hello Antonio,

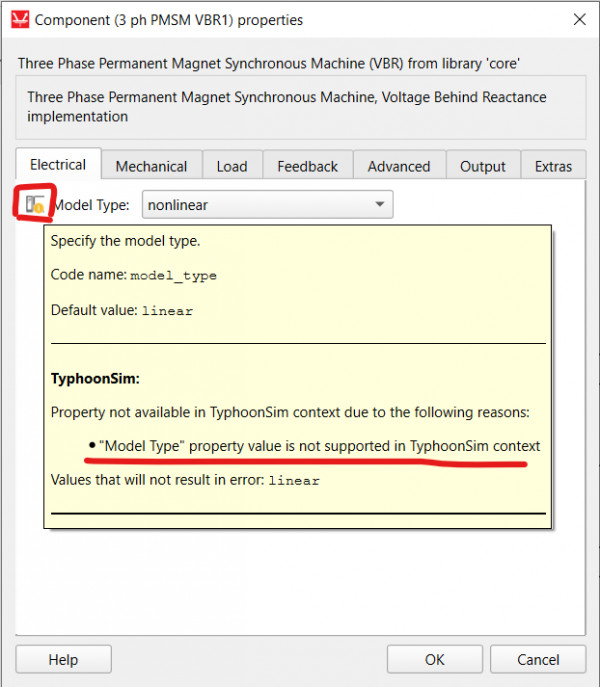

We recommend using the latest version of THCC, as the older versions did not support the nonlinear mode for PMSM VBR. For example, if you are using THCC 2025.1, then, the non-linear mode is not supported, which is indicated in the component dialog window (see below attached image).
