Computer images

Description of how Docker images can be managed via the Computer tab in the Devices section of Typhoon Test Hub.

The Images tab provides basic information on the Docker images available for the selected Computer. Additional information about images can be seen in the detailed view of a selected Image (Figure 2).

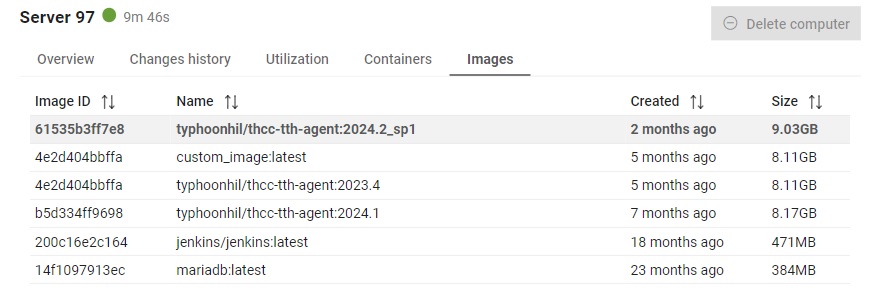

Figure 1. Images table

The Images table shows the following information:

  1. Image ID
  2. Name
  3. Created
  4. Size
Note: By clicking on the button, columns of the table can be customized - hidden or shown depending on the preference. Columns of the table can be reordered by using drag and drop in the table header. When positioning cursor in between two columns, cursor for column resizing will show and enable change of the column's width. All changes made to the table will be automatically preserved.

By clicking on a specific image, details on that single image are shown below the table of images.

Figure 2. Container details
